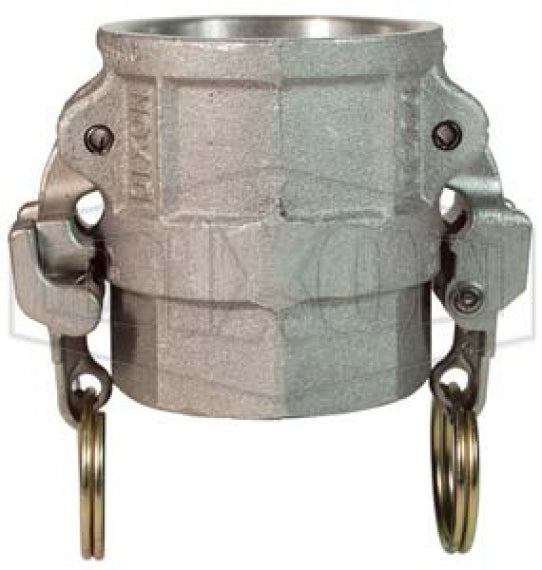

AD250EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type D | 2-1/2" Coupler x 2-1/2" Female NPT | Aluminum

AD250EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type D | 2-1/2" Coupler x 2-1/2" Female NPT | Aluminum

Save $6.47 Save $6.47
$76.60
$76.60 - $76.60
$76.60
$70.13
$70.13 - $70.13
$70.13

Dixon Valve
EZ Boss-Lock Cam & Groove Coupler | Type D | Coupler x Female NPT

Designed for use with liquids.
Specifications for Variant SKU: AD250EZ Dixon
Brand: EZ Boss-Lock
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 2-1/2in Female Cam & Groove, 2-1/2in Female NPT
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Nitrile Rubber gasket.
Features:
  • Resistant to accidental disconnection when dragged. The release lever opens in the direction opposite to the cam arm, so movements that tend to open the release lever also tend to close the cam arm.
  • Rotating action helps keep the locking device free of debris.
  • Designed to protect critical parts from impact and to withstand rugged use.
Safety Notes:
  • Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size.
  • If the rotating lever is not flush with the handle, it is not properly engaged.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
  • No more fumbling with clamps, wire, clips or pins, just close the handles and the locking mechanism is engaged.
  • Extremely easy to open, the releaser lever is under your thumb when you want to open the fitting, ergonomic.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 Brass
Part Number		 316 Stainless Steel
Part Number		 Heavy Duty
316 Stainless Steel
Part Number		 Size Max. Operating Pressure
- - RD050EZ - 3/4" x 1/2" 150 PSI
AD075EZ BD075EZ RD075EZ - 3/4" 250 PSI
AD100EZ BD100EZ RD100EZ - 1" 250 PSI
- BD125EZ RD125EZ - 1-1/4" 250 PSI
AD150EZ BD150EZ RD150EZ - 1-1/2" 250 PSI
AD200EZ BD200EZ RD200EZ - 2" 250 PSI
AD250EZ BD250EZ RD250EZ - 2-1/2" 150 PSI
AD300EZ BD300EZ RD300EZ RD300EZHD 3" 125 PSI
RD300EZHD is 400 PSI
AD400EZ BD400EZ RD400EZ RD400EZHD 4" 100 PSI
RD400EZHD is 300 PSI
AD400EZP
with Paddle Handle		 - - - 4" 100 PSI
AD500EZ - - - 5" 75 PSI
AD600EZ - RD600EZ RD600EZHD 6" 75 PSI
RD600EZHD is 150 PSI
AD800EZ - - - 8" 50 PSI
