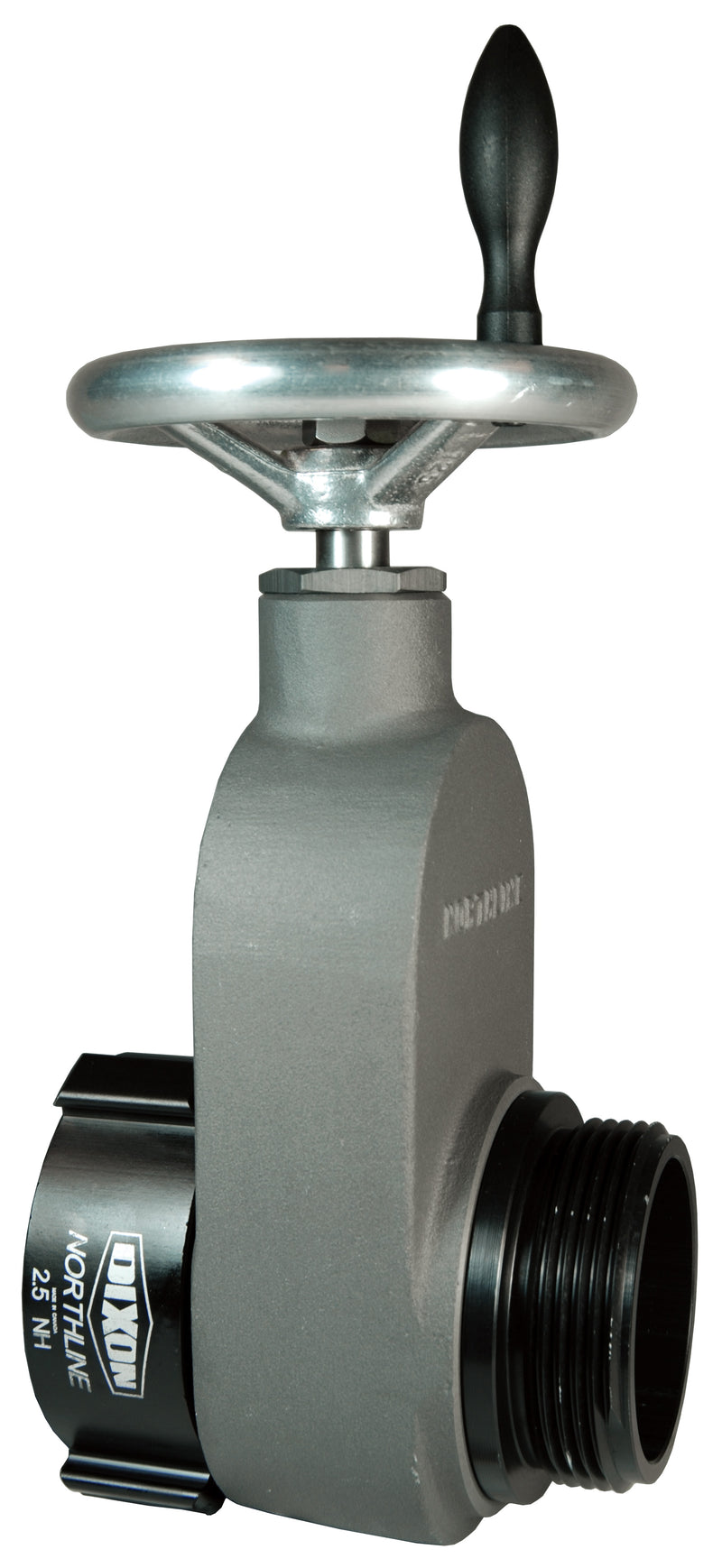

AHGV250F Dixon Aluminum Single Hydrant Gate Valve - 2-1/2" Female NST(NH) x 2-1/2" Male NST(NH)

Name: AHGV250F Dixon Aluminum Single Hydrant Gate Valve - 2-1/2" Female NST(NH) x 2-1/2" Male NST(NH)
Brand: Dixon
SKU: AHGV250F Dixon
Price: 452.63 USD
Availability: InStock

Save $65.41

$518.04

$518.04 - $518.04

$518.04

$452.63

$452.63 - $452.63

$452.63

Dixon Fire Fittings
Single Hydrant Gate Valve - Aluminum

The primary purpose of a single hydrant gate valve is to protect fire hydrants from damage that can occur if they are used for throttling.

Quantity

Specifications for Variant SKU: AHGV250F Dixon
Shape (Orientation):	Straight
Ends Configuration:	2-1/2in Female NST, 2-1/2in Male NST
Material(s):	Aluminum

Features:
High strength aluminum alloy, 356-T6. Hardcoat anodized throughout- minimum thickness 0.001". Full 2-1/2" waterway. Test pressure: 250 PSI, working pressure: 100 PSI at 70°F (21°C).

Part Number	Description	Weight (Lbs.)
AHGV250	2-1/2" Female NPSH x 2-1/2" Male NPSH	5.1000
AHGV250F	2-1/2" Female NST (NH) x 2-1/2" Male NST (NH)	5.1000
Replacement Parts
HGV-HDWHL	Replacement Handwheel and Knob	0.5510
HGV-KNOB	Replacement Knob Only	0.5000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
