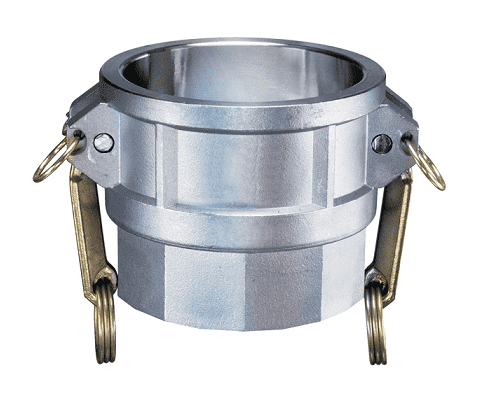

AL-D075 by Kuriyama | Quick-Acting Coupling | Part D | 3/4" Female Coupler x 3/4" Female NPT | Aluminum

AL-D075 by Kuriyama | Quick-Acting Coupling | Part D | 3/4" Female Coupler x 3/4" Female NPT | Aluminum

$9.21 - $9.21
$9.21
$10.44
$10.44 - $10.44
$10.44

Kuriyama Couplings™ - Quick-Acting Couplings - Part D - Female Coupler x Female NPT - Aluminum

Specifications for Variant SKU: AL-D075 Kuriyama
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 3/4in Female Cam & Groove, 3/4in Female NPT
Material(s): Aluminum, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains.
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses.
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts.
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • Type 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
AL-D050 1/2 x 1/2" 0.18 lbs
AL-D075 3/4" x 3/4" 0.22 lbs.
AL-D100 1" x 1" 0.42 lbs.
AL-D125 1-1/4" x 1-1/4" 0.68 lbs.
AL-D150 1-1/2" x 1-1/2" 0.80 lbs.
AL-D200 2" x 2" 0.92 lbs.
AL-D250 2-1/2" x 2-1/2" 1.18 lbs.
AL-D300 3" x 3" 1.80 lbs.
AL-D400 4" x 4" 2.16 lbs.
AL-D500 5" x 5" 3.42 lbs.
AL-D600 6" x 6" 4.24 lbs.
AL-D800 8" x 8" 9.50 lbs.
AL-D1000 10" x 10" 12.52 lbs.
HDAL-D801 8" x 8" 11.77 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
