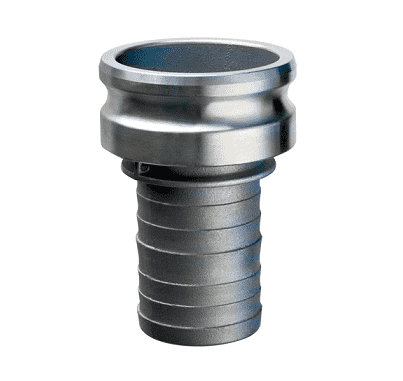

AL-E2015 by Kuriyama | Quick-Acting Special Application Coupling | Part E | 2" Reducing Adapter x 1-1/2" Hose Shank | Aluminum

AL-E2015 by Kuriyama | Quick-Acting Special Application Coupling | Part E | 2" Reducing Adapter x 1-1/2" Hose Shank | Aluminum

$14.14 - $14.14
$14.14
$14.33
$14.33 - $14.33
$14.33

Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Part E - Reducing Adapter x Hose Shank - Aluminum

Specifications for Variant SKU: AL-E2015 Kuriyama
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 2in Male Cam & Groove, 1-1/2in Hose Barb
Material(s): Aluminum
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains.
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses.
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • Type 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips
  • Buna-N Gaskets
Part Number Reducing Adapter Hose Shank Weight (Lbs.)
AL-E2015 2" 1-1/2" 0.64 lbs
AL-E3020 3" 2" 1.12 lbs
AL-E3040 3" 4" 1.9 lbs
AL-E4030 4" 3" 2.03 lbs
