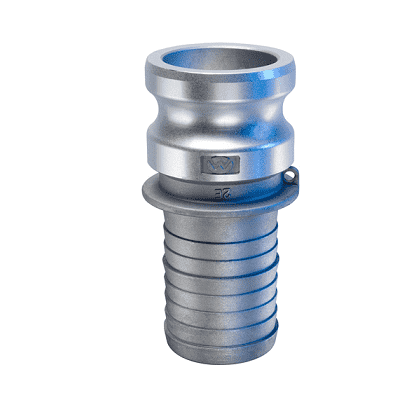

AL-E300 by Kuriyama | Quick-Acting Coupling | Part E | 3" Male Adapter x 3" Hose Shank | Aluminum

AL-E300 by Kuriyama | Quick-Acting Coupling | Part E | 3" Male Adapter x 3" Hose Shank | Aluminum

Save $8.43 Save $8.43
$29.50
$29.50 - $29.50
$29.50
$21.07
$21.07 - $21.07
$21.07

Kuriyama Couplings™ - Quick-Acting Couplings - Part E - Male Adapter x Hose Shank - Aluminum

Specifications for Variant SKU: AL-E300 Kuriyama
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 3in Male Cam & Groove, 3in Hose Barb
Material(s): Aluminum
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains.
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses.
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts.
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • Type 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
AL-E050 1/2 x 1/2" 0.08 lbs
AL-E075 3/4" x 3/4" 0.11 lbs.
AL-E100 1" x 1" 0.20 lbs.
AL-E125 1-1/4" x 1-1/4" 0.26 lbs.
AL-E150 1-1/2" x 1-1/2" 0.38 lbs.
AL-E200 2" x 2" 0.6 lbs.
AL-E250 2-1/2" x 2-1/2" 1.86 lbs.
AL-E300 3" x 3" 1.32 lbs.
AL-E400 4" x 4" 2.10 lbs.
AL-E500 5" x 5" 3.56 lbs.
AL-E600 6" x 6" 6.16 lbs.
AL-E800 8" x 8" 7.73 lbs.
AL-E1000 10" x 10" 12.9 lbs.
HDAL-E801 8" x 8" 9.75 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
