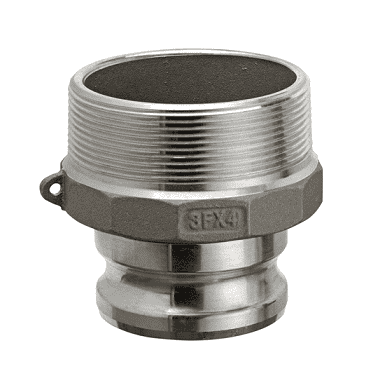

AL-F2030 by Kuriyama | Quick-Acting Special Application Coupling | Part F | 2" Reducing Adapter x 3" Male NPT | Aluminum

AL-F2030 by Kuriyama | Quick-Acting Special Application Coupling | Part F | 2" Reducing Adapter x 3" Male NPT | Aluminum

Save $2.10 Save $2.10
$20.97
$20.97 - $20.97
$20.97
$18.87
$18.87 - $18.87
$18.87

Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Part F - Reducing Adapter x Male NPT - Aluminum

Specifications for Variant SKU: AL-F2030 Kuriyama
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 2in Male Cam & Groove, 3in Male NPT
Material(s): Aluminum
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female Adapters supplied with 4 locking handles, safety clips, pull rings and chains.
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses.
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • Type 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips
  • Buna-N Gaskets
Part Number Reducing Adapter Male NPT Weight (Lbs.)
AL-F2030 2" 3" 1.06 lbs
AL-F3020 3" 2" 0.86 lbs
AL-F3040 3" 4" 1.78 lbs
AL-F4030 4" 3" 1.57 lbs
