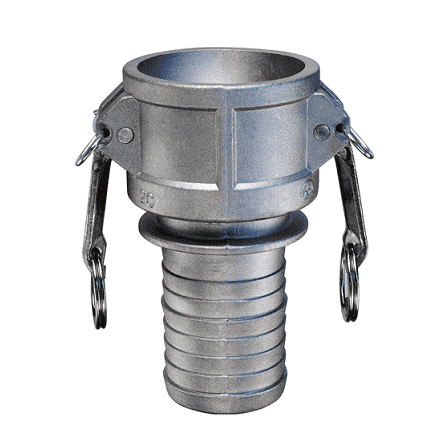

ALSH-C400 Kuriyama Aluminum Quick-Acting Coupling - Part C - 4" Female Coupler x 4" Hose Shank

ALSH-C400 by Kuriyama | Quick-Acting Coupling | Part C | 4" Female Coupler x 4" Hose Shank | Aluminum

$43.51 - $43.51
$43.51
$51.12
$51.12 - $51.12
$51.12

Kuriyama Couplings™ - Quick-Acting Couplings - Part C - Female Coupler x Hose Shank - Aluminum

Specifications for Variant SKU: ALSH-C400 Kuriyama
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 4in Female Cam & Groove, 4in Hose Barb
Material(s): Aluminum, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2"
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • Type 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips
  • Buna-N Gaskets
Part Number Size Weight (Lbs.)
ALSH-C100 1" x 1" 0.42 lbs
ALSH-C125 1-1/4" x 1-1/4" 0.68 lbs
ALSH-C150 1-1/2" x 1-1/2" 0.74 lbs
ALSH-C200 2" x 2" 0.98 lbs
ALSH-C250 2-1/2" x 2-1/2" 1.28 lbs
ALSH-C300 3" x 3" 2.2 lbs
ALSH-C400 4" x 4" 3.16 lbs
