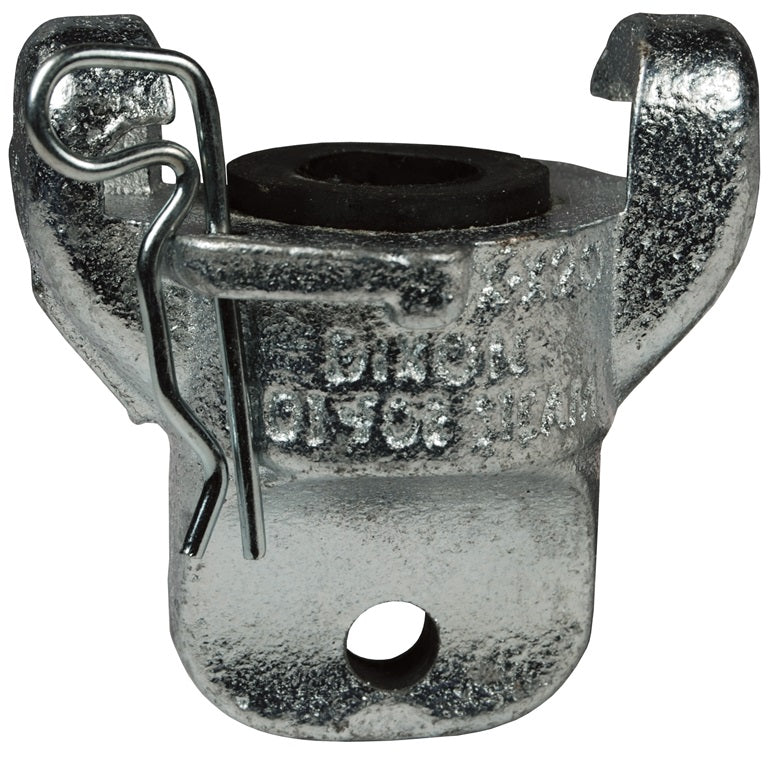

AM0 Air King® by Dixon Valve | Pneumatic Fitting | 2-Lug Blank End | Chicago Style | Iron

AM0 Air King® by Dixon Valve | Pneumatic Fitting | 2-Lug Blank End | Chicago Style | Iron

Save $0.95 Save $0.95
$10.68
$10.68 - $10.68
$10.68
$9.73
$9.73 - $9.73
$9.73

Dixon Valve
Air King® Universal Coupling | 2-Lug Blank End | Chicago Style

Air King is for air and water service only.
Specifications for Variant SKU: AM0 Dixon
Shape (Orientation): Straight
Ends Configuration: 2-Lug Chicago
Material(s): Iron
Seal Material(s): Rubber
Features:
  • Can be used with Air King ferrules
  • Supplied with safety clip
  • Supplied with rubber washer, part # AWR4
Specifications:
  • Air King meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633D.
  • Pressure rating: 150 PSI at ambient temperature 70°F (21°C).
Use:
  • Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place.
  • Only one Air King safety clip or wire type retainer is required for each Air King universal coupling.
Safety Notes:
  • Never use any Air King coupling for steam service!
  • Air King is for air and water service ONLY.
  • The use of an Air King safety clip or wire type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected.
  • To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose.
Iron
Part Number		 316 Stainless Steel
Part Number		 Description
AM0 RAM0 2-Lug Blank End
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
