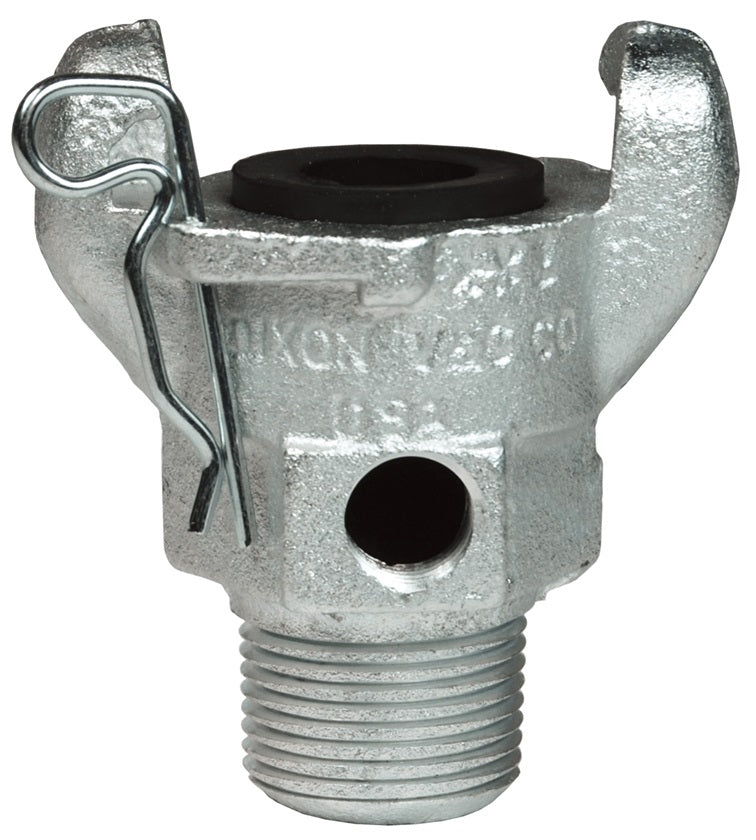

AM7T Air King® by Dixon Valve | Pneumatic Fitting with Gauge Port | 2-Lug Hose End | Chicago Style x 3/4" Male NPT | Iron

AM7T Air King® by Dixon Valve | Pneumatic Fitting with Gauge Port | 2-Lug Hose End | Chicago Style x 3/4" Male NPT | Iron

Save $3.20 Save $3.20
$35.97
$35.97 - $35.97
$35.97
$32.77
$32.77 - $32.77
$32.77

Dixon Valve
Air King® Pneumatic Fitting with Gauge Port | 2-Lug Hose End | Chicago Style x Male NPT

Air King is for air and water service only.
Specifications for Variant SKU: AM7T Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPT, 2-Lug Chicago
Material(s): Iron
Seal Material(s): Rubber
Features:
  • Drilled with 1/4" NPT for mounting gauge. (Gauge sold separately)
  • Supplied with safety clip.
  • Supplied with rubber washer, part # AWR4
Use:
  • Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place. Only one Air King safety clip or wire type retainer is required for each Air King universal coupling.
Safety Notes:
  • Never use any Air King coupling for steam service!
  • Air King is for air and water service ONLY.
  • The use of an Air King safety clip or wire type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected.
  • To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose.
  • Caution: Must use safety clips.
Iron
Part Number		 316 Stainless Steel
Part Number		 Male NPT
AM7T RAM7T 3/4"
