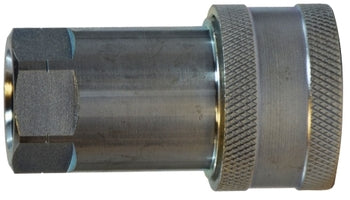

ANV1F (ANV-1-F) Midland Hydraulic Quick Disconnect - ISO-A Female Pipe Coupler - 1" Body Size - 1" Female NPT - Steel

ANV1F by Midland | Hydraulic Quick Disconnect | ISO-A Female Pipe Coupler | 1" Body Size | 1" Female NPT | Steel

Save $6.29

$40.37

$40.37 - $40.37

$40.37

$34.08

$34.08 - $34.08

$34.08

Midland Industries
Hydraulic Quick Disconnects: ISO-A Interchange - Steel

Inventory @ Manufacturers Warehouse: 207 Units

Quantity

Specifications for Variant SKU: ANV1F Midland
Shape (Orientation):	Straight
Ends Configuration:	1in Female ISO-A QD Interchange, 1in Female NPT
Material(s):	Steel

Features:
Poppet valves to prevent uncoupled leakage. Critical parts are induction hardened for durability. Dependable ball-locking mechanism holds the maling halves together. Socket and plug are precision machined from solid barstock. Standard nitrile seals temp range -40°F to +250°F.

Interchanges:
Parker 6600	Aeroquip/ Eaton FD56	Dixon 'K' Series	Hansen HA 15000	Safeway S56

ISO-A Female Pipe Coupler					ISO-A Female Pipe Plug

Part Number	Body Size	Female NPT	Max PSI	Burst Pressure	Part Number	Body Size	Female NPT	Max PSI	Burst Pressure
ANV14F (ANV-14-F)	1/4"	1/4"	5,000 PSI	18,270 PSI	ANV14M (ANV-14-M)	1/4"	1/4"	5,000 PSI	18,270 PSI
ANV38F (ANV-38-F)	3/8"	3/8"	4,000 PSI	18,270 PSI	ANV38M (ANV-38-M)	3/8"	3/8"	4,000 PSI	18,270 PSI
ANV12F (ANV-12-F)	1/2"	1/2"	4,000 PSI	16,500 PSI	ANV12M (ANV-12-M)	1/2"	1/2"	4,000 PSI	16,500 PSI
ANV34F (ANV-34-F)	3/4"	3/4"	4,000 PSI	14,800 PSI	ANV34M (ANV-34-M)	3/4"	3/4"	4,000 PSI	14,800 PSI
ANV1F (ANV-1-F)	1"	1"	4,000 PSI	12,400 PSI	ANV1M (ANV-1-M)	1"	1"	4,000 PSI	12,400 PSI

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.

Shop Parts by Midland Industries
