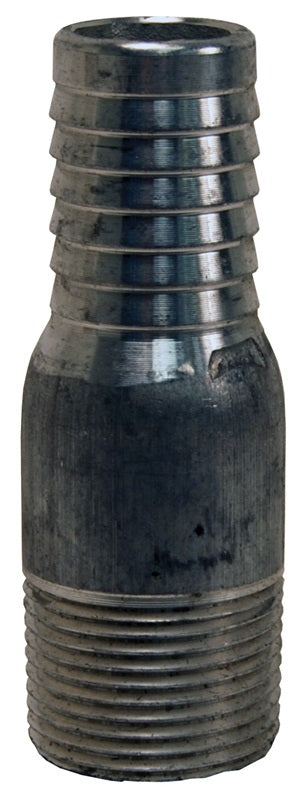

AST15 by Dixon Valve | King Combination Nipple | No Knurl | 1-1/4" Male NPT x 1-1/4" Hose ID | Aluminum

Name: AST15 by Dixon Valve | King Combination Nipple | No Knurl | 1-1/4" Male NPT x 1-1/4" Hose ID | Aluminum
Brand: Dixon
SKU: AST15 Dixon
Price: 16.32 USD
Availability: InStock

Save $0.36

$16.68

$16.68 - $16.68

$16.68

$16.32

$16.32 - $16.32

$16.32

Dixon Valve
King Combination Nipple | No Knurl | Male NPT x Hose Barb

Recommended for low-pressure discharge and suction service for compatible liquids.

Quantity

Specifications for Variant SKU: AST15 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Male NPT, 1-1/4in Hose Barb
Material(s):	Aluminum

Safety Notes:
King Combination Nipples are not recommended for steam. 1-1/4" and above are not for compressible products such as air or nitrogen. The working pressure may vary with the construction of the hose, the type of clamping system used and the application. In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.

Unplated Steel Part Number	Plated Steel Part Number	Brass Part Number	Aluminum Part Number	316 Stainless Steel Part Number	Hastelloy® Part Number	Size
-	-	-	-	RST1	-	1/2"
-	-	-	-	RST5	-	3/4"
-	-	-	-	RST10	-	1"
-	-	BST15	AST15	RST15	-	1-1/4"
-	-	BST20	AST20	RST20	-	1-1/2"
-	-	BST25	AST25	RST25	HST25	2"
ST30	STC30	BST30	AST30	RST30	-	2-1/2"
ST35	STC35	BST35	AST35	RST35	-	3"
ST40	STC40	BST40	AST40	RST40	-	4"
ST50	STC50	-	AST50	RST50	-	5"
ST60	STC60	-	AST60	RST60	-	6"
ST80	STC80	-	-	RST80	-	8"
ST100	STC100	-	-	-	-	10"
ST120	STC120	-	-	-	-	12"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
