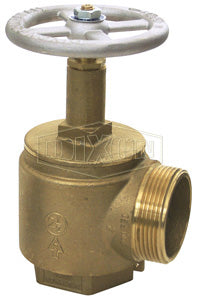

AV250-I Dixon Cast Brass Global Angle Hose Valve - 2-1/2" Female NPT x 2-1/2" Male NST(NH)

AV250-I Dixon Cast Brass Global Angle Hose Valve - 2-1/2" Female NPT x 2-1/2" Male NST(NH)

Save $313.20 Save $313.20
$313.20
$313.20 - $313.20
$313.20
$0.00
$0.00 - $0.00
$0.00

Dixon Fire Fittings
Angle Hose Valve - Cast Brass Global Angle Hose Valve
Specifications for Variant SKU: AV250-I Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 2-1/2in Female NPT, 2-1/2in Male NST
Material(s): Brass, Aluminum
Features:
  • Working pressure: 300 PSI at 70°F (21°C)
  • Underwriters Listed and Factory Mutual approved.
  • New York City Board of Standards and Appeals approved # MEA 54-07-E.
  • Cast, yellow DZR brass alloy body.
  • Aluminum handwheel.
Size A B C Closed C Open D E
1-1/2" 4.13" 3.75" 6.80" 7.78" 2.25" 1.81"
2-1/2" 5.69" 5.00" 9.00" 10.72" 3.19" 2.59"
Part Number Description Weight
(Lbs.)
AV150-I 1-1/2" Female NPT x 1-1/2" Male NST (NH) 4.1000
AV250-I 2-1/2" Female NPT x 2-1/2" Male NST (NH) 9.0000
AV250NYFD-I 2-1/2" Female NPT x 2-1/2" Male NYFD 9.0200
AVF150-I 1-1/2" Female NPT x 1-1/2" Female NPT 3.6600
AVF250-I 2-1/2" Female NPT x 2-1/2" Female NPT 9.8000
Replacement Parts
AV150-W 1-1/2" Aluminum Replacement Handwheel 0.2200
AV250-W 2-1/2" Aluminum Replacement Handwheel 0.4400
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
