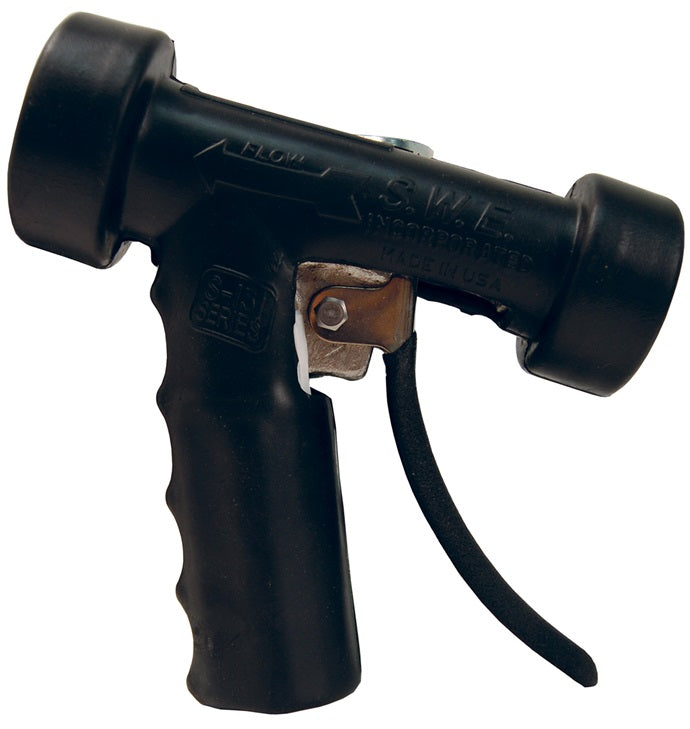

AWSG-TG by Dixon Valve | Thermal-Gard Elevated Temperature Spray Nozzle | Aluminum

AWSG-TG by Dixon Valve | Thermal-Gard Elevated Temperature Spray Nozzle | Aluminum

Save $31.16 Save $31.16
$280.44
$280.44 - $280.44
$280.44
$249.28
$249.28 - $249.28
$249.28

Dixon Valve
Thermal-Gard Elevated Temperature Spray Nozzle

Thermal-Gard elevated temperature spray nozzle protects the operator from extreme hot water temperatures that exceed the comfort zone of standard hot water nozzles.
Specifications for Variant SKU: AWSG-TG Dixon
Material(s): Aluminum
Features:
  • Thermal insulating sleeve reduces overall heat during elevated temperature conditions..
  • Assembly includes required special rigid, stainless steel adapter, (3/8" male NPT x 1/2" female NPT).
Construction:
  • Stainless steel lever handle is coated for additional thermal protection and operator comfort.
  • Lightweight aluminum alloy body reduces overall weight.
  • Aluminum alloy body is electroless nickel plated for additional corrosion protection.
  • 3/8" female NPT inlet.
  • Black cover.
Specifications:
  • Recommended for water temperatures above 140 °F (60 °C) to a maximum temperature of 200 °F (93 °C).
  • 12.5 GPM flow capacity.
  • Working pressure: 150 PSI.
Part Number Description
AWSG-TG Thermal-Gard Elevated Temperature Spray Nozzle
