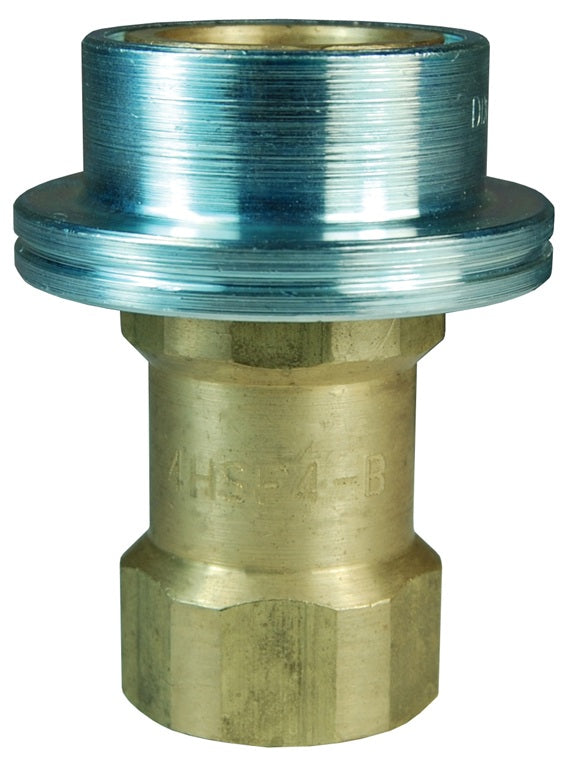

PS-12HF12-B Dixon Valve 1-1/2" NPT Steam Quick Disconnect Poppet Valve Coupler - Brass (Old Part #: B16-1200S)

Save $23.36 Save $23.36
Original price $233.60
Original price $233.60 - Original price $233.60
Original price $233.60
Current price $210.24
$210.24 - $210.24
Current price $210.24

Steam Quick Disconnect Couplings - Poppet Valve Coupler - Brass

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for SKU: PS-12HF12-B Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female ISO-B QD Interchange X 1-1/2in Female NPTF
Material(s): Brass
  • Designed exclusively for steam applications.
  • Two ethylene propylene O-rings in the coupler and one ethylene propylene O-ring in the plug provide double protection against leaks.
  • Coupler has a large sleeve especially designed for easier gripping with gloves.
  • Solid brass
  • Stainless steel springs and locking balls
  • Plated steel sleeve.
  • Ethylene propylene O-rings.
  • Warning: Do Not Disconnect Under Pressure!
  • Note: Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
Part Number Size Seal Saturated Steam Pressure (PSI) Temp. Rating Weight (Lbs.)
2HSF2-B 1/4" Ethylene Propylene O-rings 100 PSIG 330 deg. F 0.3200
3HSF3-B 3/8" Ethylene Propylene O-rings 100 PSIG 330 deg. F 0.4600
4HSF4-B 1/2" Ethylene Propylene O-rings 100 PSIG 330 deg. F 0.8500
6HSF6-B 3/4" Ethylene Propylene O-rings 100 PSIG 330 deg. F 1.3700
8HSF8-B 1" Ethylene Propylene O-rings 100 PSIG 330 deg. F 2.1200
PS-12HF12-B 1-1/2" Ethylene Propylene O-rings 100 PSIG 330 deg. F 4.5800
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
