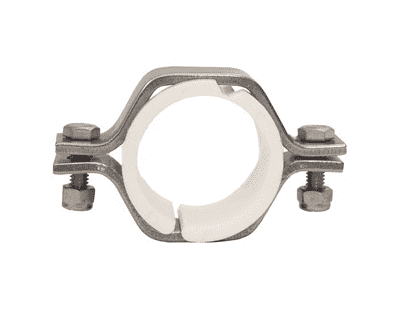

B24PV-G200 Dixon 304 Stainless Steel Sanitary Hex Pipe Size Hanger with Polypropylene Sleeves - 2" Pipe Size

B24PV-G200 Dixon Valve 304 Stainless Steel Sanitary Hex Pipe Size Hanger with Polypropylene Sleeves - 2" Pipe Size

Save $2.18 Save $2.18
$24.69
$24.69 - $24.69
$24.69
$22.51
$22.51 - $22.51
$22.51

Dixon Sanitary Fittings Sanitary Pipe Size Hanger - Hex Pipe Size Hanger with Polypropylene Sleeve - 304 Stainless Steel
Specifications for Variant SKU: B24PV-G200 Dixon
Material(s): 304 Stainless Steel, Polypropylene
Installation:
  • Straight sections need support every 10 ft.
  • Each side of every valve (as close as possible to the connection) needs support.
  • Support each change of directions.
Note:
  • Please note in sizes 1/2" through 12" pipe is known by its nominal inside diameter, which differs from its actual inside diameter. To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used. For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID).
Part Number Pipe Size Dimensions

Weight (Lbs.)
A B C
B24PV-G50 1/2" - - - -
B24PV-G75 3/4" - - - 0.5500
B24PV-G100 1" 3.700" 2.100" 1.500" 0.5700
B24PV-G150 1-1/2" 4.400" 2.600" 1.500" 0.7000
B24PV-G200 2" 5.000" 3.100" 1.500" 0.7800
B24PV-G250 2-1/2" 5.600" 3.600" 1.500" 0.8900
B24PV-G300 3" 6.000" 4.300" 1.600" 0.9500
B24PV-G400 4" 7.700" 5.100" 1.600" 1.2500
B24PV-G500 5" - - - -
B24PV-G600 6" 9.900" 7.200" 2.600" 3.1400
B24PV-G800 8" - - - -
