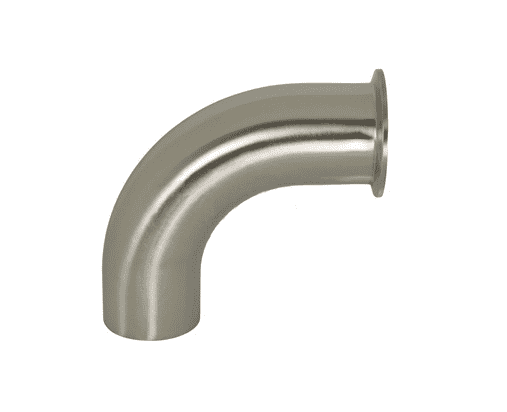

B2CM-R600 Dixon Valve 316L Stainless Steel Sanitary Polished 90 deg. Clamp x Weld Elbow - 6" Tube OD

B2CM-R600 Dixon Valve 316L Stainless Steel Sanitary Polished 90 deg. Clamp x Weld Elbow - 6" Tube OD

$524.03 - $524.03
$524.03
$530.76
$530.76 - $530.76
$530.76

Dixon Sanitary Fittings Polished Weld Elbow - Polished 90° Clamp x Weld Elbow - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B2CM-R600 Dixon
Shape (Orientation): 90 Degree
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • 3A sanitary finish ID and OD
Part Number Tube OD Dimensions

 Nominal Wall Weight (Lbs.)
A B R OD ID
B2CM-R50 1/2" - - - - - - 1.0000
B2CM-R75 3/4" - - - - - - 1.0000
B2CM-R100 1" 2.06" 2.56" 1.50" 1.00" 0.87" 0.065" 0.4900
B2CM-R150 1-1/2" 2.94" 3.44" 2.25" 1.50" 1.37" 0.065" 0.4700
B2CM-R200 2" 4.06" 4.56" 3.00" 2.00" 1.87" 0.065" 0.8700
B2CM-R250 2-1/2" 5.19" 5.69" 3.75" 2.50" 2.37" 0.065" 1.3500
B2CM-R300 3" 6.31" 6.81" 4.50" 3.00" 2.87" 0.065" 1.8500
B2CM-R400 4" 8.31" 8.94" 6.00" 4.00" 3.83" 0.083" 4.2100
B2CM-R600 6" - - - - - - 7.0000
B2CM-R800 8" - - - - - - -
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
