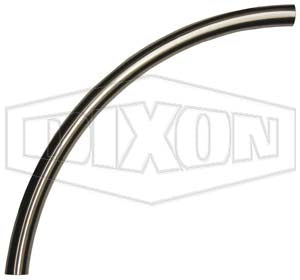

B2SXL24-R600 Dixon Valve Sanitary Polished 90° Sweep Buttweld Elbow with 24" Center Line Radius - 6" - 316L Stainless Steel

B2SXL24-R600 Dixon Valve Sanitary Polished 90° Sweep Buttweld Elbow with 24" Center Line Radius - 6" - 316L Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings Sanitary Polished 90° Sweep Buttweld Elbow with 24" Center Line Radius

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B2SXL24-R600 Dixon
Shape (Orientation): 90 Degree
Material(s): 316L Stainless Steel
Special Properties: Polished
Notes:
  • Standard with no tangents.
Material:
  • 3A sanitary finish ID and OD
  • 316L Stainless Steel
Part Number Size Wall Thickness Dimensions

A R OD WT
B2SXL24-R150 1-1/2" 0.065" 24.0" 24.0" 1.50" 0.07"
B2SXL24-R200 2" 0.065" 24.0" 24.0" 2.00" 0.07"
B2SXL24-R250 2-1/2" 0.065" 24.0" 24.0 2.50" 0.07"
B2SXL24-R300 3" 0.065" 24.0" 24.0" 3.00" 0.07"
B2SXL24-R400 4" - 24.0" 24.0" 4.00" -
B2SXL24-R600 6" - 24.0" 24.0" 6.00" -
