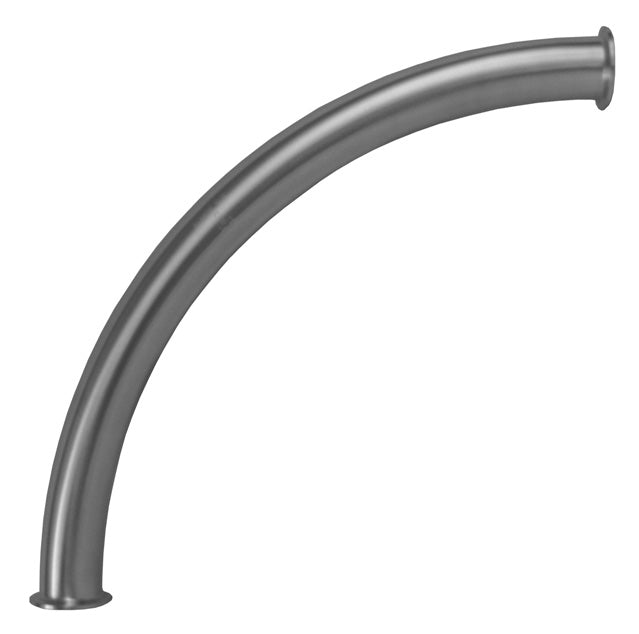

B2SXLMP24-R400 Dixon Valve Sanitary Polished 90° Sweep Clamp Elbow with 24" Long Radius - 4" - 316L Stainless Steel

B2SXLMP24-R400 Dixon Valve Sanitary Polished 90° Sweep Clamp Elbow with 24" Long Radius - 4" - 316L Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings Sanitary Polished 90° Sweep Clamp Elbow with 24" Long Radius
Specifications for Variant SKU: B2SXLMP24-R400 Dixon
Shape (Orientation): 90 Degree
Material(s): 316L Stainless Steel
Special Properties: Polished
Material:
  • 316L Stainless Steel
Part Number Tube OD Dimensions
A R
B2SXLMP24-R150 1-1/2" 24.500" 24.000"
B2SXLMP24-R200 2" 24.500" 24.000"
B2SXLMP24-R250 2-1/2" 24.500" 24.000"
B2SXLMP24-R300 3" 24.500" 24.000"
B2SXLMP24-R400 4" 24.625" 24.000"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
