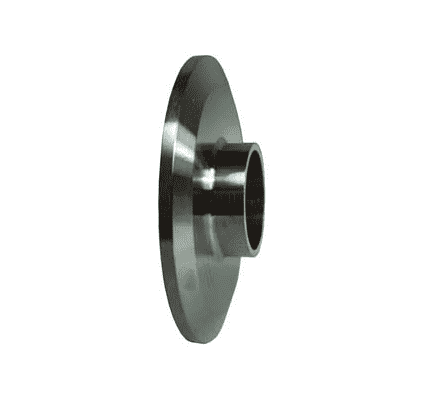

B31WMP-R250150 Dixon Valve 316L Stainless Steel Sanitary Reducing Ferrule - 2-1/2" x 1-1/2" Tube OD

B31WMP-R250150 Dixon Valve 316L Stainless Steel Sanitary Reducing Ferrule - 2-1/2" x 1-1/2" Tube OD

Save $18.35 Save $18.35
$45.88
$45.88 - $45.88
$45.88
$27.53
$27.53 - $27.53
$27.53

Dixon Sanitary Fittings Sanitary Clamp Ferrule - Reducing Ferrule - 316L Stainless Steel
Specifications for Variant SKU: B31WMP-R250150 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions

Weight (Lbs.)
A B C D E
B31WMP-R10075 1" x 3/4" - - - - - 0.1650
B31WMP-R15075 1-1/2" x 3/4" - - - - - -
B31WMP-R200100 2" x 1" 0.50" 1.00" 0.87" 2.52" 2.22" 0.2850
B31WMP-R200150 2" x 1-1/2" - - - - - 0.2100
B31WMP-R250150 2-1/2" x 1-1/2" 0.50" 1.50" 1.37" 3.05" 2.78" 3.0000
B31WMP-R250200 2-1/2" x 2" 0.50" 2.00" 1.87" 3.05" 2.78" 3.0000
B31WMP-R300200 3" x 2" 0.50" 2.00" 1.87" 3.58" 3.34" 0.4900
B31WMP-R300250 3" x 2-1/2" 0.50" 2.50" 2.37" 3.58" 3.28" 0.0300
B31WMP-R400200 4" x 2" - - - - - 1.1000
B31WMP-R400250 4" x 2-1/2" - - - - - -
B31WMP-R400300 4" x 3" 0.63" 3.00" 2.87" 4.68" 4.34" 0.7450
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
