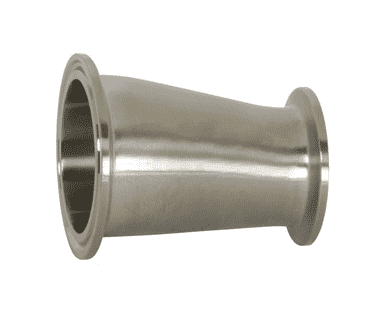

B3214MP-G300200 Dixon 304 Stainless Steel Sanitary Clamp Eccentric Reducer - 3" x 2" Tube OD

B3214MP-G300200 Dixon Valve 304 Stainless Steel Sanitary Clamp Eccentric Reducer - 3" x 2" Tube OD

Save $51.11 Save $51.11
$127.78
$127.78 - $127.78
$127.78
$76.67
$76.67 - $76.67
$76.67

Dixon Sanitary Fittings Sanitary Clamp Reducer - Clamp Eccentric Reducer - 304 Stainless Steel
Specifications for Variant SKU: B3214MP-G300200 Dixon
Shape (Orientation): Straight
Ends Configuration: 3in Sanitary Clamp End, 2in Sanitary Clamp End
Material(s): 304 Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions

Weight (Lbs.)
A B C WT1 WT2
B3214MP-G150100 1-1/2" x 1" 3.00" 1.50" 1.00" 0.07" 0.07" 0.3900
B3214MP-G200100 2" x 1" 5.00" 2.00" 1.00" 0.07" 0.07" 0.6100
B3214MP-G200150 2" x 1-1/2" 3.00" 2.00" 1.50" 0.07" 0.07" 0.3800
B3214MP-G250150 2-1/2" x 1-1/2" 5.00" 2.50" 1.50" 0.07" 0.07" 0.6400
B3214MP-G250200 2-1/2" x 2" 3.00" 2.50" 2.00" 0.07" 0.07" 0.5500
B3214MP-G300100 3" x 1" 9.00" 3.00" 1.00" 0.07" 0.07" 3.0000
B3214MP-G300150 3" x 1-1/2" 7.00" 3.00" 1.50" 0.07" 0.07" 1.0650
B3214MP-G300200 3" x 2" 5.00" 3.00" 2.00" 0.07" 0.07" 0.9600
B3214MP-G300250 3" x 2-1/2" 3.00" 3.00" 2.50" 0.07" 0.07" 0.6500
B3214MP-G400150 4" x 1-1/2" 11.13" 4.00" 1.50" 0.08" 0.07" 2.5400
B3214MP-G400200 4" x 2" 9.13" 4.00" 2.00" 0.08" 0.07" 2.2550
B3214MP-G400250 4" x 2-1/2" 7.13" 4.00" 2.50" 0.08" 0.07" 2.0600
B3214MP-G400300 4" x 3" 5.13" 4.00" 3.00" 0.08" 0.07" 1.5800
B3214MP-G600300 6" x 3" 6.88" 6.00" 3.00" 0.11" 0.07" 3.3650
B3214MP-G600400 6" x 4" 7.00" 6.00" 4.00" 0.11" 0.08" 3.5300
B3214MP-G800400 8" x 4" 7.50" 8.00" 4.00" 0.11" 0.08" 5.5000
B3214MP-G800600 8" x 6" 7.75" 8.00" 6.00" 0.11" 0.11" 5.8100
