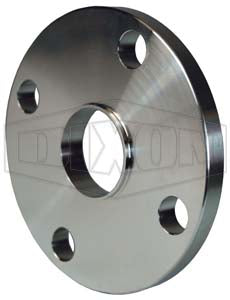

B38W-R250 Dixon Valve 316L Stainless Steel Sanitary Unpolished Weld Neck Flange - 2-1/2" Tube OD

B38W-R250 Dixon Valve 316L Stainless Steel Sanitary Unpolished Weld Neck Flange - 2-1/2" Tube OD

Save $130.59 Save $130.59
$326.48
$326.48 - $326.48
$326.48
$195.89
$195.89 - $195.89
$195.89

Dixon Sanitary Fittings Sanitary Unpolished Weld Neck Flange - 316L Stainless Steel
Specifications for Variant SKU: B38W-R250 Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Weld End, 2-1/2in 150# Flange
Material(s): 316L Stainless Steel
Special Properties: Unpolished
Part Number Tube OD Dimensions

Weight (Lbs.)
A B C D # of Bolt Holes
B38W-R50 1/2" - - - - - -
B38W-R75 3/4" - - - - - 1.2050
B38W-R100 1" 4.25" 3.13" 0.63" 0.50" 4 1.3700
B38W-R150 1-1/2" 5.00" 3.88" 0.63" 0.50" 4 1.8600
B38W-R200 2" 6.00" 4.75" 0.75" 0.63" 4 1.0000
B38W-R250 2-1/2" 7.00" 5.50" 0.75" 0.63" 4 -
B38W-R300 3" 7.50" 6.00" 0.75" 0.63" 4 5.4500
B38W-R400 4" 9.00" 7.50" 0.75" 0.63" 8 7.1200
B38W-R600 6" 11.00" 9.50" 0.88" 0.63" 8 -
B38W-R800 8" 13" 11.75" 0.88" 0.63" 8 -
B38W-R1000 10" 16" 14.25" 1.00" 0.81" 12 -
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
