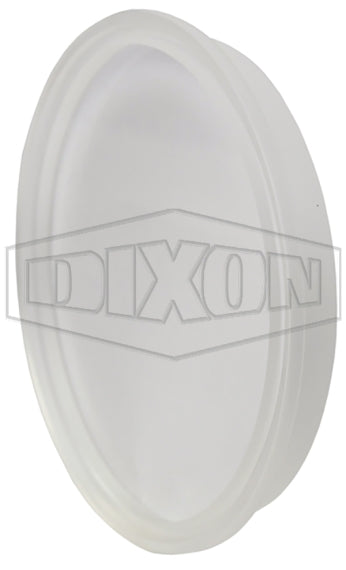

B5416MP-A250 by Dixon Valve | Sanitary Sight Glass End Cap | Tube OD 2-1/2" | Acrylic Plastic

B5416MP-A250 by Dixon Valve | Sanitary Sight Glass End Cap | Tube OD 2-1/2" | Acrylic Plastic

Save $6.59 Save $6.59
$72.39
$72.39 - $72.39
$72.39
$65.80
$65.80 - $65.80
$65.80

Dixon Valve - Sanitary Sight Glass | Acrylic Sight Glass End Cap

For use on any line with a clamp and gasket.
Specifications for Variant SKU: B5416MP-A250 Dixon
Specifications:
  • Maximum temperature: 150°F (66°C)
  • Maximum operating pressure: 100 PSI
Part Number Tube OD Dimensions
A B C D
B5416MP-A100150 1" - 1-1/2" 1.98" 1.72" 1.68" 0.50"
B5416MP-A200 2" 2.52" 2.22" 2.19" 0.50"
B5416MP-A250 2-1/2" 3.05" 2.78" 2.71" 0.50"
B5416MP-A300 3" 3.58" 3.28" 3.22" 0.50"
B5416MP-A400 4" 4.68" 4.34" 4.26" 0.50"
B5416MP-A600 6" 6.57" 6.18" 6.13" 0.50"
