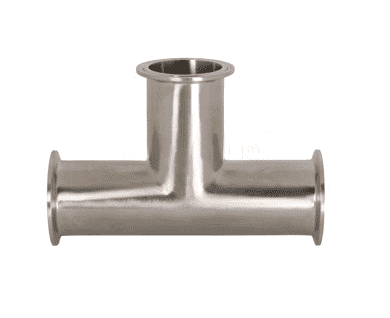

B7MP-R200 Dixon 316L Stainless Steel Sanitary Clamp Tee - 2" Tube OD

B7MP-R200 Dixon Valve 316L Stainless Steel Sanitary Clamp Tee - 2" Tube OD

Save $12.99 Save $12.99
$61.23
$61.23 - $61.23
$61.23
$48.24
$48.24 - $48.24
$48.24

Dixon Sanitary Fittings Sanitary Clamp Tee - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B7MP-R200 Dixon
Shape (Orientation): Tee
Ends Configuration: 2in Sanitary Clamp End, 2in Sanitary Clamp End, 2in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Part Number Tube OD Dimensions
 Weight (Lbs.)
A B ID OD
B7MP-R50 1/2" 4.75" 2.38" 0.37" 0.50" 0.3110
B7MP-R75 3/4" 5.00" 2.50" 0.62" 0.75" 0.3215
B7MP-R100 1" 4.75" 2.38" 0.87" 1.00" 0.6900
B7MP-R150 1-1/2" 5.50" 2.75" 1.37" 1.50" 0.7300
B7MP-R200 2" 7.00" 3.50" 1.87" 2.00" 1.1800
B7MP-R250 2-1/2" 7.00" 3.50" 2.37" 2.50" 1.4850
B7MP-R300 3" 7.50" 3.75" 2.87" 3.00" 2.5100
B7MP-R400 4" 9.00" 4.50" 3.83" 4.00" 3.8300
B7MP-R600 6" 13.00" 6.50" 5.78" 6.00" 9.0900
B7MP-R800 8" 15.75" 7.88" - 8.00 13.9200
B7MP-R1000 10" - - - 10.00" 18.0000
