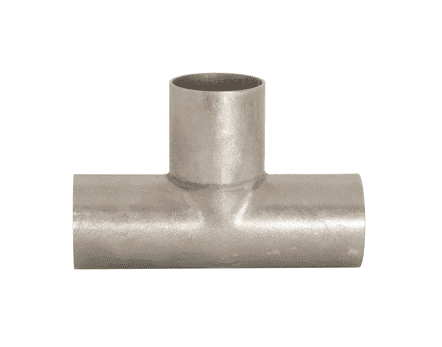

B7W-G100U Dixon 304 Stainless Steel Sanitary Unpolished Long Weld Tee - 1" Tube OD

B7W-G100U Dixon Valve 304 Stainless Steel Sanitary Unpolished Long Weld Tee - 1" Tube OD

Save $5.79 Save $5.79
$14.48
$14.48 - $14.48
$14.48
$8.69
$8.69 - $8.69
$8.69

Dixon Sanitary Fittings Sanitary Weld Unpolished Tee - Unpolished Long Weld Tee - 304 Stainless Steel
Specifications for Variant SKU: B7W-G100U Dixon
Shape (Orientation): Tee
Ends Configuration: 1in Weld End, 1in Weld End, Some Ends Match
Material(s): 304 Stainless Steel
Special Properties: Unpolished
Features:
  • Finish: Unpolished
Part Number Tube OD Dimensions
 Nominal Wall Weight (Lbs.)
A B OD ID
B7W-G100U 1" 3.75" 1.88" 1.00" 0.87" .065" 0.2850
B7W-G150U 1-1/2" 4.50" 2.25" 1.50" 1.37" .065" 0.4705
B7W-G200U 2" 6.00" 3.00" 2.00" 1.87" .065" 0.8650
B7W-G250U 2-1/2" 6.00" 3.00" 2.50" 2.37" .065" 1.0500
B7W-G300U 3" 6.50" 3.25" 3.00" 2.87" .065" 1.3650
B7W-G400U 4" 7.75" 3.88" 4.00" 3.83" .083" 2.7000
B7W-G600U 6" 11.25" 5.63" 6.00" 5.78" .109" 17.8600
B7W-G800U 8" 14.00" 7.00" 8.00" 7.78" .120" 11.2000
B7W-G1200U 12" - - - - - 29.8600
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
