BARK500X100 Tigerflex by Kuriyama | BARK Series | Bark Hose Standard Duty Material Handling Hose | 5" ID | PVC | 100ft Length

BARK500X100 Tigerflex by Kuriyama | BARK Series | Bark Hose Standard Duty Material Handling Hose | 5" ID | PVC | 100ft Length

Save $115.72 Save $115.72
$1,158.52
$1,158.52 - $1,158.52
$1,158.52
$1,042.80
$1,042.80 - $1,042.80
$1,042.80

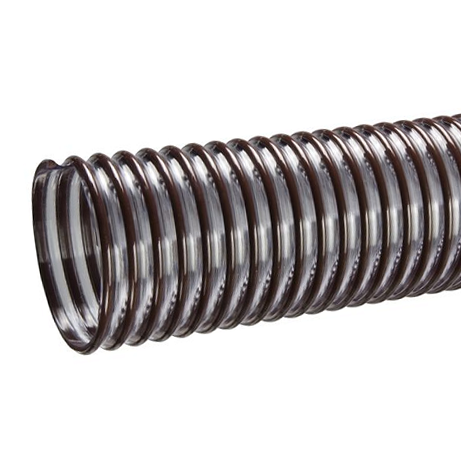

Kuriyama Tigerflex BARK™ Series Bark Hose Standard Duty PVC Material Handling Hose


Package Quantity: 100 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: BARK500X100 Kuriyama | 100 |
Brand: Tigerflex
Series: AMPH Series
Hose Color(s): Black & Clear/Semi-Clear
Internal Diameter: 5in
Outer Diameter: 5.47in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Lawn and leaf collection, Material handling - standard duty, Soil, seed and compost delivery, Mulch, bark, wood chips and other surfacing material delivery SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Abrasion Resistant PVC Tube - Formulated from highly durable PVC compounds for increased abrasion and tear resistance versus standard PVC hoses.
  • Convoluted Outer Cover - Provides increased hose flexibility. Allows for easier unwinding and winding on hose reels.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
BARK400X100 4" 101.6mm 4.45" 113.0mm 18 PSI 11 PSI 15 in. Hg 10 in. Hg 10" 100ft 0.95 lbs
BARK500X100 5" 127.0mm 5.47" 139mm 17 PSI 10 PSI 14 in. Hg 8 in. Hg 11" 100ft 1.29 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
