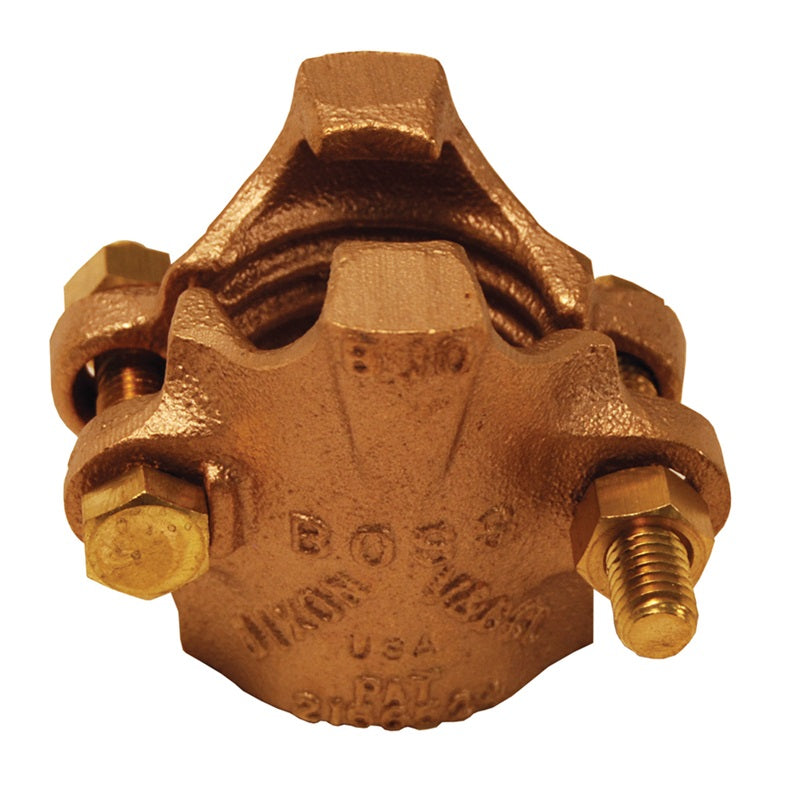

BBU9 by Dixon Valve | Boss® Clamp | 2-Bolt Type | 2-Gripping Fingers | 3/4" Hose ID | Hose OD: from 1-10/64" to 1-20/64" | Brass

BBU9 by Dixon Valve | Boss® Clamp | 2-Bolt Type | 2-Gripping Fingers | 3/4" Hose ID | Hose OD: from 1-10/64" to 1-20/64" | Brass

Save $4.01 Save $4.01
$36.07
$36.07 - $36.07
$36.07
$32.06
$32.06 - $32.06
$32.06

Dixon Valve
Boss® Clamp | 2-Bolt Type | 2-Gripping Fingers
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: BBU9 Dixon
Brand: Boss
Material(s): Brass
Minimum Clamp I.D.: 1-10/64
Maximum Clamp I.D.: 1-20/64
Features:
  • 2-Bolt type clamp.
  • 2 Gripping fingers.
  • 2 Clamp sections.
Use:
  • The correct size Boss Clamp must be used.
  • Bolts in Boss Clamps are designed to bend as they are tightened. This allows the clamp to conform to the hose outside diameter.
  • Always tighten bolts to their specified torque value.
  • Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses.
  • Boss Clamps are for single use only! Once removed they are to be discarded.
Specifications:
  • Recommended for steam service up to 450°F (232°C).
Instructions:
  • 2 Bolt Boss Clamp Bolt Tightening Sequence, Using a torque wrench, begin tightening the bolts as follows:
    A) First bolt (nut facing assembler) 1 full turn.
    B) Second bolt (opposite first bolt) 1 full turn.
    C) Repeat procedure "a" and "b" until both bolts have reached the recommended torque.
    D) Remove assembly from vise.
Safety Notes:
  • The bolts used in the Boss interlocking clamps are not standard bolts. They vary from standard bolts in their length, diameter, overall thread length and material hardness. These bolts can be retorqued, but it is not recommended that the bolts or clamps be reused, as they are designed for a single bend only. Dixon Recommends using only factory supplied replacement bolts. Replacement nuts and bolts are available, contact Dixon for more information.
  • Torque values for clamps are based on dry bolts. The use of lubricant on bolts will adversely effect clamp performance. Do not lubricate nuts and bolts. Recommended torque rating in ft. lbs.
  • Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
  • Note. Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
Zinc Plated Iron
Part Number		 Stainless Steel****
Part Number		 Brass
Part Number		 Hose I.D. Hose O.D. Torque ft.lbs.**
from to
BD*** - - 1/4" 36/64" 42/64" 6 ft lbs
CD*** - - 3/8" 44/64" 56/64" 6 ft lbs
DD*** - - 1/2" 52/64" 60/64" 6 ft lbs
B4*** RB4 BB4 1/2" 60/64" 1-4/64" 12 ft lbs
10 ft lbs (for Brass)
B5 - - 1/2" 1-4/64" 1-12/64" 12 ft lbs
BU9*** RBU9 BBU9 3/4" 1-10/64" 1-20/64 21 ft lbs
18 ft lbs (for Brass)
B9 RB9 - 3/4" 1-20/64" 1-32/64 21 ft lbs
B10*** - - 3/4" 1-32/64" 1-44/64 21 ft lbs

** Torque applies to plated iron and stainless steel clamps
*** Global investment cast carbon steel
**** When installing stainless steel bolts and nuts, the use of anti-seize or anti-galling lubricant is advised. A light coat is required on the bolt threads to prevent thread galling and artificial torque reading.
