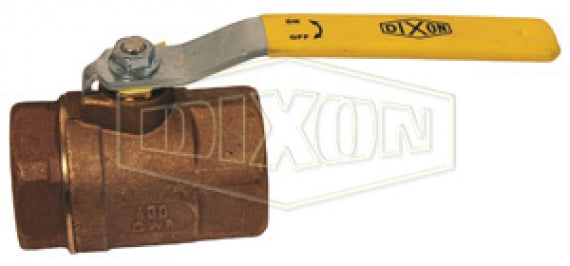

BBV75ST by Dixon Valve | 250 Lb. Steam Ball Valve | Standard Port | 3/4" Female NPT x 3/4" Female NPT | Bronze

BBV75ST by Dixon Valve | 250 Lb. Steam Ball Valve | Standard Port | 3/4" Female NPT x 3/4" Female NPT | Bronze

Save $1.38 Save $1.38
$129.09
$129.09 - $129.09
$129.09
$127.71
$127.71 - $127.71
$127.71

Dixon Valve & Coupling
250 Lb. Steam Ball Valve | Bronze

Recommended for use with fluids with widely varying temperatures and/or thermal expansion rates.
Specifications for Variant SKU: BBV75ST Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s): Bronze
Features:
  • Blow-out proof stem design.
  • Multi-fill RPTFE seats.
  • Multi-fill stuffing box ring.
  • High temperature MTFE stem packing.
  • Adjustable packing gland.
Materials:
  • Body: Bronze.
  • 316 stainless steel ball and stem.
Specifications:
  • Maximum temperature: 450°F (232°C)
  • Pressure rating: 600 PSI; 250 PSI saturated steam.
  • Vacuum service to 29 inches Hg.
Part Number Female NPT x Female NPT Port
BBV50ST 1/2" Full
BBV75ST 3/4" Standard
BBV100ST 1" Standard
BBV200ST 2" Standard
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
