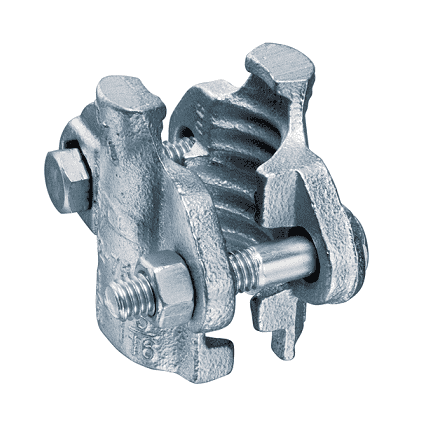

BC2-050A by Kuriyama | 2 Bolt Interlocking Hose Clamp | Size Range: 15/16" - 1-1/16" | Torque: 12 ft. lbs. | Zinc Plate

Name: BC2-050A by Kuriyama | 2 Bolt Interlocking Hose Clamp | Size Range: 15/16" - 1-1/16" | Torque: 12 ft. lbs. | Zinc Plate
Brand: Kuriyama
SKU: BC2-050A Kuriyama
Price: 3.17 USD
Availability: InStock

Save $1.27

$4.44

$4.44 - $4.44

$4.44

$3.17

$3.17 - $3.17

$3.17

Kuriyama Couplings™ - Interlocking Bolt Clamps - 2 Bolt Hose Clamp - Zinc Plated

Specifications for Variant SKU: BC2-050A Kuriyama
Material(s):	Zink-Plated Steel
Minimum Clamp I.D.:	0.9375
Maximum Clamp I.D.:	1.0625

Applications:
Recommended for use with Ground Joint Couplings For use with Kuriyama Hoses
Features:
Torque Rating in Ft. lbs. Do not Lubricate nuts and bolts.
Materials:
Zinc Plated

Part Number	Size Range (in.)	Torque (ft. lbs.)	Weight (Lbs.)
BC2-050	13/16" - 15/16"	6 ft. Lbs.	0.31 lbs
BC2-050A	15/16" - 1-1/16"	12 ft. Lbs.	0.44 lbs
BC2-050B	1-1/16" - 1-3/16"	12 ft. Lbs.	0.48 lbs
BC2-075	1-5/32" - 1-9/32"	12 ft. Lbs.	0.73 lbs
BC2-075A	1-3/16" - 1-5/16"	21 ft. Lbs.	0.79 lbs
BC2-050B	1-5/16" - 1-1/2"	21 ft. Lbs.	0.88 lbs
BC2-075C	1-1/2" - 1-11/16"	21 ft. Lbs.	1.15 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
