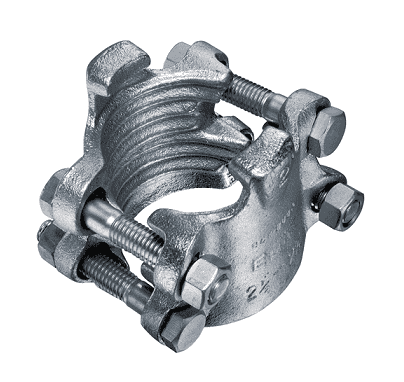

BC4-300A by Kuriyama | 4 Bolt Interlocking Hose Clamp | Size Range: 3-13/16" - 4-1/16" | Torque: 150 ft. lbs. | Zinc Plate

Name: BC4-300A by Kuriyama | 4 Bolt Interlocking Hose Clamp | Size Range: 3-13/16" - 4-1/16" | Torque: 150 ft. lbs. | Zinc Plate
Brand: Kuriyama
SKU: BC4-300A Kuriyama
Price: 46.22 USD
Availability: InStock

Save $18.49

$64.71

$64.71 - $64.71

$64.71

$46.22

$46.22 - $46.22

$46.22

Kuriyama Couplings™ - Interlocking Bolt Clamps - 4 Bolt Hose Clamp - Zinc Plated

Specifications for Variant SKU: BC4-300A Kuriyama
Material(s):	Zink-Plated Steel
Minimum Clamp I.D.:	3.8125
Maximum Clamp I.D.:	4.0625

Applications:
Recommended for use with Ground Joint Couplings For use with Kuriyama Hoses
Features:
N/A
Materials:
Zinc Plated

Part Number	Size Range (in.)	Torque (ft. lbs.)	Weight (Lbs.)
BC4-100	1-17/32" - 1-23/32"	21 ft. Lbs.	1.50 lbs
BC4-100A	1-13/32" - 1-9/16"	21 ft. Lbs.	1.54 lbs
BC4-100B	1-11/16" - 1-27/32"	21 ft. Lbs.	1.68 lbs
BC4-100C	1-7/8" - 2-1/16"	21 ft. Lbs.	1.90 lbs
BC4-125	2-1/16" - 2-1/4"	40 ft. Lbs.	2.36 lbs
BC4-150	2" - 2-17/32"	40 ft. Lbs.	2.40 lbs
BC4-150A	2-3/32" - 2-9/32"	40 ft. Lbs.	2.56 lbs
BC4-150B	2-1/4" - 2-7/16"	40 ft. Lbs.	2.78 lbs
BC4-150C	2-15/32" - 2-23/32"	40 ft. Lbs.	2.67 lbs
BC4-200	2-11/32" - 2-17/32"	60 ft. Lbs.	3.04 lbs
BC4-200A	2-1/2" - 2-25/32"	60 ft. Lbs.	2.84 lbs
BC4-200B	2-3/4" - 3-1/16"	60 ft. Lbs.	3.99 lbs
BC4-200C	3-3/32" - 3-7/16"	60 ft. Lbs.	3.97 lbs
BC4-250	3-1/2" - 3-15/16"	150 ft. Lbs.	6.86 lbs
BC4-300	3-1/2" - 3-15/16"	150 ft. Lbs.	7.45 lbs
BC4-300A	3-13/16" - 4-1/16"	150 ft. Lbs.	7.89 lbs
BC4-300B	4-1/16" - 4-7/16"	200 ft. Lbs.	10.19 lbs
BC4-300C	4-1/4" - 4-13/16"	200 ft. Lbs.	10.30 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
