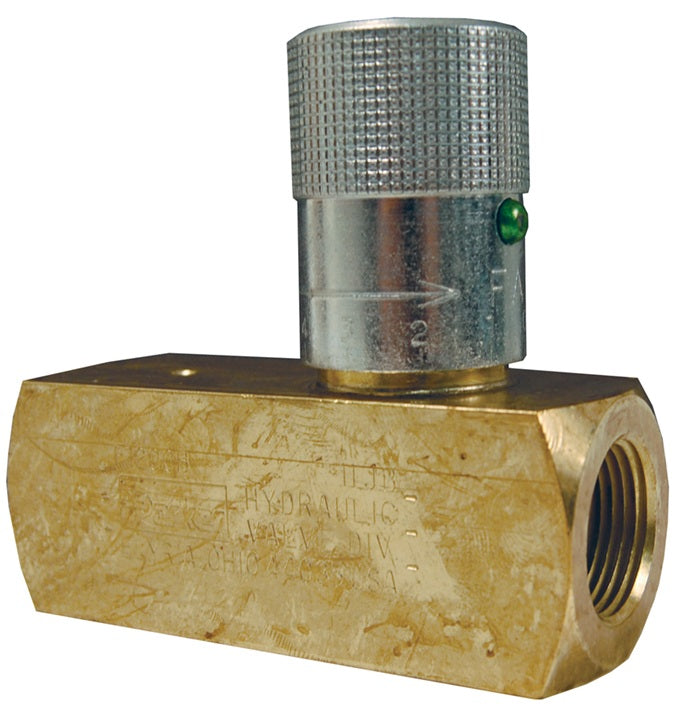

BFC1600 by Dixon Valve | Series-F | Flow Control Valve | 1" Female NPTF | Brass

Name: BFC1600 by Dixon Valve | Series-F | Flow Control Valve | 1" Female NPTF | Brass
Brand: Dixon
SKU: BFC1600 Dixon
Price: 1092.91 USD
Availability: InStock

Save $100.79

$1,193.70

$1,193.70 - $1,193.70

$1,193.70

$1,092.91

$1,092.91 - $1,092.91

$1,092.91

Dixon Valve
Series-F | Flow Control Valve

Provides precision flow control and full shutoff in one flow direction; automatically allows unrestricted flow in the opposite direction.

Two-step needle for fine adjustments at low flow with first three turns of the adjusting knob; next three turns give full-open needle position and conventional throttling control.

Quantity

Specifications for Variant SKU: BFC1600 Dixon
Series:	Series-F
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT, 1in Female NPT, Some Ends Match
Material(s):	Brass

Features:
When flow is reversed the heavy-duty poppet/retainer permits full flow return capacity. Color coded scale simplifies flow setting, resetting, adjusting, and return to an original flow. A set screw locks the valve on any desired setting.
Material:
Brass Seal: Nitrile
Specifications:
1/8" - 3/4" maximum operating pressure: 2,000 PSI at ambient temperature 70°F (21°C), 1" 500 PSI at ambient temperature 70°F (21°C) Operating Temperature Range: -20°F to 250°F (-29°C to 121°C) Cracking pressure: 5 PSI

Part Number	Female NPTF
BFC200	1/8"
BFC400	1/4"
BFC600	3/8"
BFC800	1/2"
BFC1200	3/4"
BFC1600	1"
