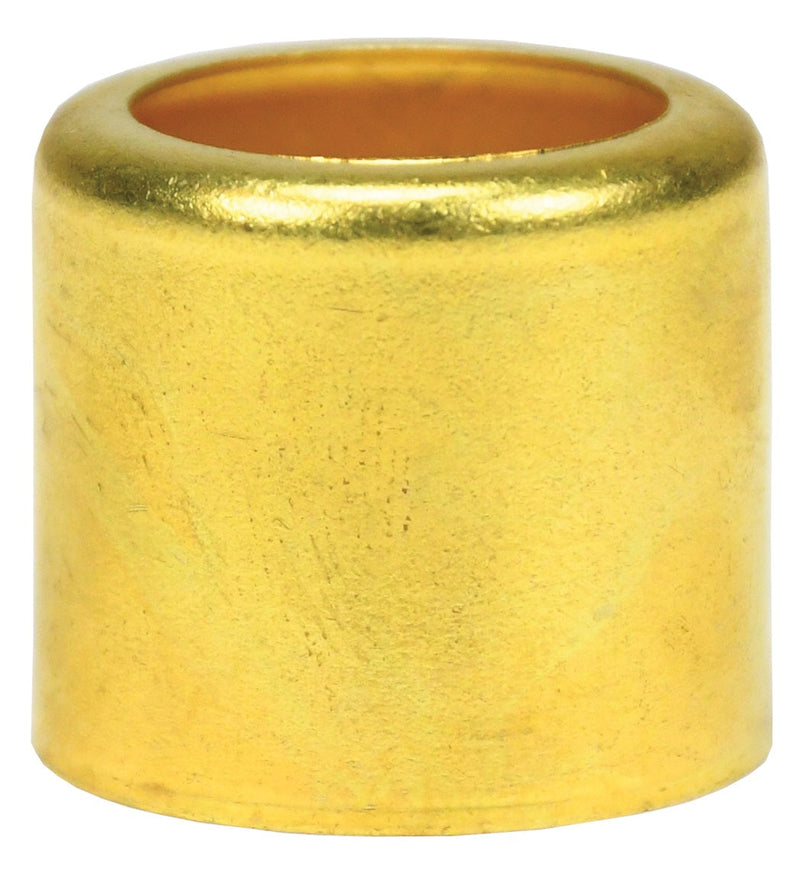

BFMW1100 by Dixon Valve | Hose Crimp Ferrule for Fluid | 1.100" Ferrule ID | Brass | (Pack of 25)

Save $1.30

$26.63

$26.63 - $26.63

$26.63

$25.33

$25.33 - $25.33

$25.33

Dixon Valve
Hose Crimp Ferrule for Fluid

For use with medium weight air hose.

Package Quantity: 25 EA

Quantity

Specifications for Variant SKU: BFMW1100 Dixon \| 25 \|
Shape (Orientation):	No Orientation
Material(s):	Brass

Material:
Brass

Part Number	Ferrule ID	Ferrule Length	End Hole Size	Metal Gauge	Ribbed Die	Plain Die	Standard Ind. Pt Num.	Previous Part Number
BF800	.800"	.844"	.688"	.024"	R28	P29	-	-
BF825	.825"	.844"	.688"	.024"	R27	P28	-	-
BF850	.850"	.568"	.688"	.019"	R26	P27	Z	-
BFW875	.875"	.844"	.688"	.024"	R25	P26	7244A	2008750C
BFW900	.900"	.844"	.688"	.024"	R24	P25	5029A	-
BFW925	.925"	.840"	.690"	.025"	R23	P24	7242A	2009250C
BFW975	.975"	.844"	.688"	.024"	R21	P22	5028A	2009750C
BFW1025	1.025"	.844"	.693"	.024"	R19	P20	7114A	2001025C
BFW1175	1.175"	.844"	.875"	.024"	R13	P14	7088A	2001175C
BFMW1050	1.050"	.625"	.750"	.025"	R18	P19	3605	-
BFMW1100	1.100"	.843"	.812"	.023"	R16	P17	5027A	2001100C
BFMW1150	1.150"	.844"	.880"	.024"	R15	P15	7104A	2009950C
BFMW1225	1.225"	.875"	.875"	.025"	R11	P12	875-K	2001225C
BFMW1275	1.275"	.875"	1.000"	.025"	R9	P10	875-I	-

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
