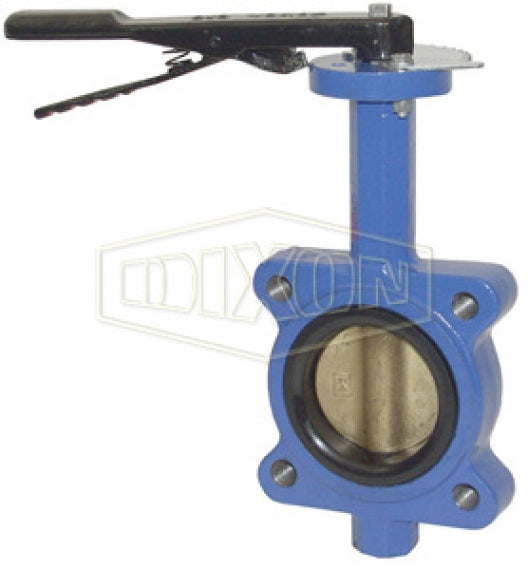

BFVL300 by Dixon Valve | Butterfly Valve | Threaded Lug Style | 3" 150# Flange | Nitrile Rubber Liner | Ductile Iron

BFVL300 by Dixon Valve | Butterfly Valve | Threaded Lug Style | 3" 150# Flange | Nitrile Rubber Liner | Ductile Iron

Save $83.04 Save $83.04
$255.97
$255.97 - $255.97
$255.97
$172.93
$172.93 - $172.93
$172.93

Dixon Valve & Coupling
Ductile Iron Butterfly Valve | Threaded Lug Style

For use between two 150 lb. flanges.
Specifications for Variant SKU: BFVL300 Dixon
Shape (Orientation): Straight
Ends Configuration: 3in 150# Flange, 3in 150# Flange, Some Ends Match
Material(s): Ductile Iron
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • 10 position trigger grip handle.
Materials:
  • Ductile iron body, ASTM A536.
  • Aluminum bronze disc, ASTM B148, ALY.954.
  • PTFE bushing.
  • Stainless steel top and bottom stems.
Specifications:
  • Pressure rating: 200 PSI at ambient temperature 70°F (21°C)
Warning:
  • Not Recommended For Steam Service.
Part Number
Valve with
Nitrile Rubber Liner		 Part Number
Valve with
EPDM Liner		 Size
BFVL200 BFVL200E 2"
BFVL300 BFVL300E 3"
BFVL400 BFVL400E 4"
BFVL600 BFVL600E 6"
