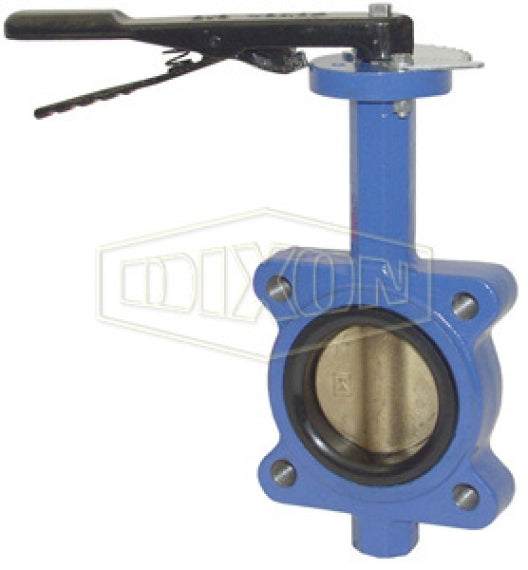

BFVL600 by Dixon Valve | Butterfly Valve | Threaded Lug Style | 6" 150# Flange | Nitrile Rubber Liner | Ductile Iron

Save $221.80

$683.65

$683.65 - $683.65

$683.65

$461.85

$461.85 - $461.85

$461.85

Dixon Valve & Coupling
Ductile Iron Butterfly Valve | Threaded Lug Style

For use between two 150 lb. flanges.

Quantity

Specifications for Variant SKU: BFVL600 Dixon
Shape (Orientation):	Straight
Ends Configuration:	6in 150# Flange, 6in 150# Flange, Some Ends Match
Material(s):	Ductile Iron
Seal Material(s):	Buna-N/Nitrile Rubber

Features:
10 position trigger grip handle.
Materials:
Ductile iron body, ASTM A536. Aluminum bronze disc, ASTM B148, ALY.954. PTFE bushing. Stainless steel top and bottom stems.
Specifications:
Pressure rating: 200 PSI at ambient temperature 70°F (21°C)
Warning:
Not Recommended For Steam Service.

Part Number Valve with Nitrile Rubber Liner	Part Number Valve with EPDM Liner	Size
BFVL200	BFVL200E	2"
BFVL300	BFVL300E	3"
BFVL400	BFVL400E	4"
BFVL600	BFVL600E	6"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
