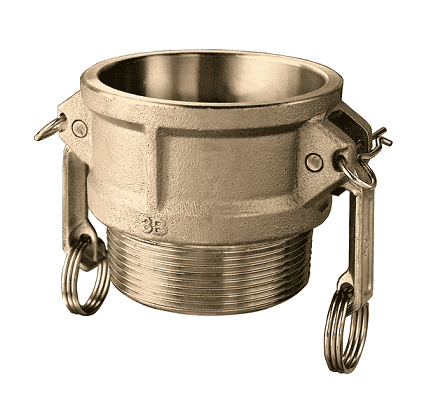

BR-B100 by Kuriyama | Quick-Acting Coupling | Part B | 1" Female Coupler x 1" Male NPT | Brass

BR-B100 by Kuriyama | Quick-Acting Coupling | Part B | 1" Female Coupler x 1" Male NPT | Brass

Save $0.58 Save $0.58
$20.67
$20.67 - $20.67
$20.67
$20.09
$20.09 - $20.09
$20.09

Kuriyama Couplings™ - Quick-Acting Couplings - Part B - Female Coupler x Male NPT - Brass

Specifications for Variant SKU: BR-B100 Kuriyama
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 1in Female Cam & Groove, 1in Male NPT
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Material Handling, Irrigation, Fracking
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Brass alloy is specially designed for high tensile strength and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM B584 Grade C85700 brass alloy.
  • Forged brass handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
BR-B050 1/2" x 1/2" 0.36 lbs
BR-B075 3/4" x 3/4" 0.44 lbs.
BR-B100 1" x 1" 0.66 lbs.
BR-B125 1-1/4" x 1-1/4" 1.19 lbs.
BR-B150 1-1/2" x 1-1/2" 1.21 lbs.
BR-B200 2" x 2" 1.39 lbs.
BR-B250 2-1/2" x 2-1/2" 1.87 lbs.
BR-B300 3" x 3" 3.36 lbs.
BR-B400 4" x 4" 4.19 lbs.
BR-B500 5" x 5" 5.18 lbs.
BR-B600 6" x 6" 8.25 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
