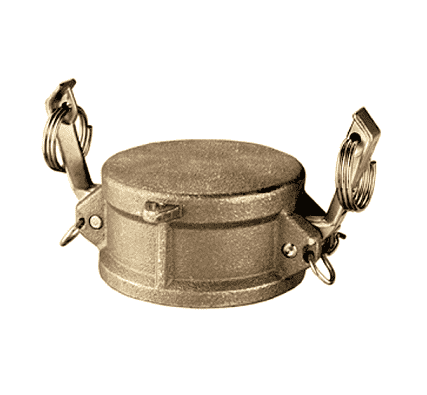

BR-DC600 by Kuriyama | Quick-Acting Coupling | Part DC | 6" Dust Cap | Brass

BR-DC600 by Kuriyama | Quick-Acting Coupling | Part DC | 6" Dust Cap | Brass

Save $104.94 Save $104.94
$367.30
$367.30 - $367.30
$367.30
$262.36
$262.36 - $262.36
$262.36

Kuriyama Couplings™ - Quick-Acting Couplings - Part DC - Dust Cap - Brass

Specifications for Variant SKU: BR-DC600 Kuriyama
Cam Type: Type DC
Ends Configuration: 6in Female Cam & Groove
Material(s): Brass
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Brass alloy is specially designed for high tensile strength and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM B584 Grade C85700 brass alloy.
  • Forged brass handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
BR-DC075 3/4" 0.66 lbs.
BR-DC100 1" 0.95 lbs.
BR-DC125 1-1/4" 1.04 lbs.
BR-DC150 1-1/2" 1.32 lbs.
BR-DC200 2" 2.05 lbs.
BR-DC250 2-1/2" 2.20 lbs.
BR-DC300 3" 3.96 lbs.
BR-DC400 4" 4.74 lbs.
BR-DC500 5" 8.59 lbs.
BR-DC600 6" 4.66 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
