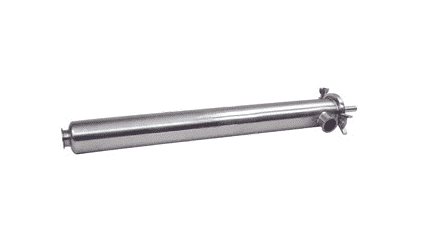

BSCCQ3-R150 Dixon Bradford 1-1/2" 316L Stainless Steel Sanitary Side-Entry Filter / Strainer

BSCCQ3-R150 Dixon Valve Bradford 1-1/2" 316L Stainless Steel Sanitary Side-Entry Filter / Strainer

Save $931.43 Save $931.43
$2,328.58
$2,328.58 - $2,328.58
$2,328.58
$1,397.15
$1,397.15 - $1,397.15
$1,397.15

Dixon Bradford™ Sanitary Filters / Strainers
Side-Entry Filter / Strainer - 316L Stainless Steel
Specifications for Variant SKU: BSCCQ3-R150 Dixon
Applications:
  • Filter Definition:
    • A filter uses a disposable media to remove finer particulate from the stream. Dixon Sanitary holds Authorization Number 1446 for the 3-A Sanitary Standard for Filters using Single Service Filter Media, Number: 10-4. Vertical mounting is necessary to meet 3-A 10-04 requirements for minimal product clingage.
  • Strainer Definition:
    • A strainer is a device used to separate solids from fluids. Here it is used for larger particulate matter from liquid or gas. It uses cleanable media.
Features:
  • serviceable without removing from the line.
  • Must be vertical mount to be 3A.
  • Side entry units ship standard with the following: spring, end cap with handle, distributor cap, clamp gasket, 1/4" perforated back-up tube, body and squeeze clamp
Part Number Size Dimensions
 Weight (Lbs.)
A B C D
BSCCQ3-R150 1-1/2" 41.90" 4.00" 35.00" 3.50" 21.3500
BSCCQ3-R200 2" 41.90" 4.00" 35.00" 3.50" 21.6000
BSCCQ3-R20018 2" (with 1/8" Holes) - - - - 21.6000
BSCCQ3-R300 3" 41.90" 4.50" 35.00" 3.75" 24.0000
BSCCQ3-R30018 3" (with 1/8" Holes) - - - - 24.0000
