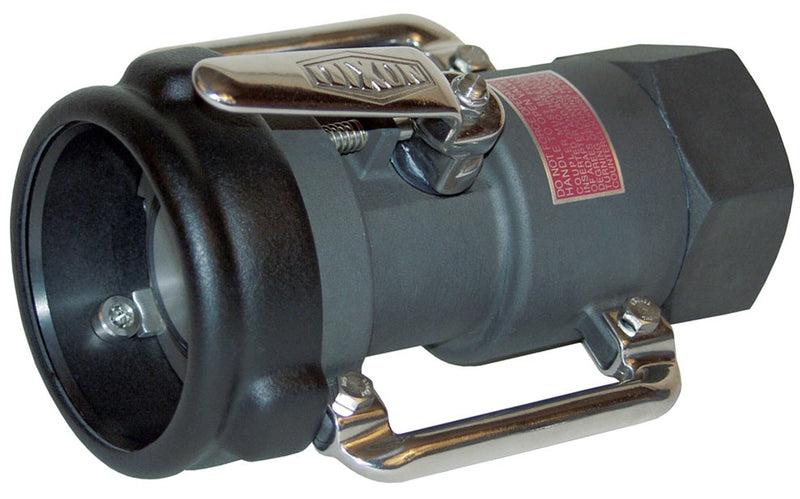

BSS61-300 by Dixon Valve | Dry Disconnect | Bayonet Style | 3" Size | Swivel Coupler x Female NPT (ZERK Fitting) | Nitrile Rubber Seal | Anodized Hard Coat Aluminum

Save $113.76

$1,106.96

$1,106.96 - $1,106.96

$1,106.96

$993.20

$993.20 - $993.20

$993.20

Dixon Valve
Dry Disconnect | Bayonet Style | Swivel Coupler x Female NPT

For the spill-less transfer of petroleum products such as fuel oil, lube oil blending and tank truck delivery.

Quantity

Specifications for Variant SKU: BSS61-300 Dixon
Shape (Orientation):	Straight
Ends Configuration:	3in Female Bayonet Style Dry Disconnect, 3in Female NPT
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Swivel

Applications:
Bayonet dry disconnect fittings are ideally suited for the spill-less transfer of petroleum products such as fuel oil, lube oil blending, and tank truck delivery. The design of the Bayco bayonet dry disconnect system ensures a spill free connection, fluid cannot flow until couplings are connected together and the valve is opened. The coupling can then not be disconnected until the valve handle is closed.
Compatibility & Interchange Data:
Interchangeable with the Emco Wheaton™ Dry Break™.
Construction:
Swivels have a standard ZERK fitting. Material: Anodized Hard Coat Aluminum
Specifications:
Canadian registration number CRN# OH14055 all provinces. Maximum operating pressure: 85 PSI at 70°F (21°C).

Part Number	Size	Seal Material
BSS61-100	1"	Nitrile Rubber
BSS61-200	2"	Nitrile Rubber
BSS62-200	2"	FKM
BSS61-300	3"	Nitrile Rubber
BSS62-300	3"	FKM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
