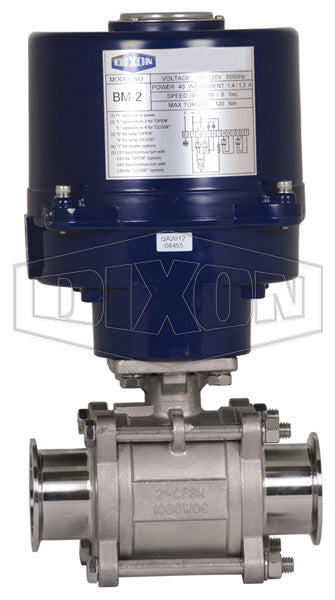

BV2CV-250CC-EA Dixon Valve 2-1/2" Electrically Actuated 3-Piece Sanitary Clamp End Ball Valve - 316 Stainless Steel - Lever Overide (110VAC) - Seat: Virgin PTFE

BV2CV-250CC-EA Dixon Valve 2-1/2" Electrically Actuated 3-Piece Sanitary Clamp End Ball Valve - 316 Stainless Steel - Lever Overide (110VAC) - Seat: Virgin PTFE

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Valves
Electrically Actuated 3-Piece Sanitary Clamp End Ball Valve - 316 Stainless Steel - Lever Overide (110VAC)

Seat: Virgin PTFE
Specifications for Variant SKU: BV2CV-250CC-EA Dixon
Features:
  • Compact design for areas with tight space restrictions.
  • Full-port valve design offers lower pressure drop and a less turbulent flow.
  • Balanced encapsulated valve construction minimizes cold-flow of seats.
  • Precision stainless steel balls reduce torque and friction losses while extending the seat life of the valve.
  • Actuator features an extended duty cycle induction motor, high alloy steel gear train, H-insulation class, visual position indication and space heater standard.
  • Manual override standard on 1/2"- 1-1/2" valves.
  • Temperature Range: -41°F to 140°F (-40.6°C to 60°C)
Construction:
  • Valve has Virgin PTFE seats, a blow-out proof stainless steel stem and live-loaded stem packing.
  • ID polish is Ra 32 minimum.
  • Electric actuator: lightweight powder coated aluminum alloy housing, NEMA 4/4X waterproof and dustproof.
Specifications:
  • ISO 9001, CS, CE and CSA-C US
  • RoHS compliant
Safety Notes:
  • Even though there are torque safety factors built into our automated ball valve packages, actual service conditions must also be considered when selecting the proper product for the appropriate application.
  • Severe service conditions such as dirty water, dirty air, all slurries, raw sewage water, oils, and other viscous fluids can have a dramatic affect in raising the torque requirements of ball valves as much as 75% and therefore larger actuators may be required. Please consult Dixon when dealing with these types of applications.
Part Number Size Pressure Rating
BV2CV-075CC-EA 3/4" 1000 PSI WOG
BV2CV-100CC-EA 1" 1000 PSI WOG
BV2CV-150CC-EA 1-1/2" 1000 PSI WOG
BV2CV-200CC-EA 2" 1000 PSI WOG
BV2CV-250CC-EA 2-1/2" 800 PSI WOG
