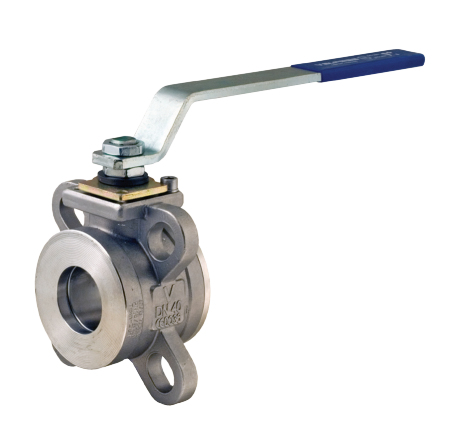

BV2IC-150WW-A Dixon Valve 1-1/2" Sanitary Wafer Ball Valve - 316 Stainless Steel - Seat: PTFE

Name: BV2IC-150WW-A Dixon Valve 1-1/2" Sanitary Wafer Ball Valve - 316 Stainless Steel - Seat: PTFE
Brand: Dixon
SKU: BV2IC-150WW-A Dixon
Price: 522.35 USD
Availability: InStock

Save $65.29

$587.64

$587.64 - $587.64

$587.64

$522.35

$522.35 - $522.35

$522.35

Dixon Sanitary Valves
BV2IC Series Industrial Stainless Steel Wafer Ball Valve - 316 Stainless Steel

Seat: PTFE

Quantity

Specifications for Variant SKU: BV2IC-150WW-A Dixon
Shape (Orientation):	Straight
Material(s):	316 Stainless Steel
Seal Material(s):	PTFE

Features:
ANSI Class 150 wafer style ball valve. Full port, sizes 1" to 4". Blow out proof stem. Ideal option to high performance butterfly valves. Space saving design. Antistatic stem design. Locking plate included.
Materials:
Body: CF8M. Ball and End Connection: 316 stainless steel. Elastomers: FKM. Stem seal: PTFE.


Part Number	Size	A	B	C	D	E	F	G	H	I	J	K
BV2IC-100WW-A	1"	ANSI 150	1.81"	6.85"	3.58"	2.81"	0.90"	0.41"	M12	0.31"	F04	4xM5
BV2IC-125WW-A	1-1/4"	ANSI 150	2.12"	6.85"	3.74"	2.95"	0.90"	0.41"	M12	0.31"	F04	4xM5
BV2IC-150WW-A	1-1/2"	ANSI 150	2.50"	9.84"	4.33"	3.34"	1.10"	0.59"	M16	0.39"	F05	4xM6
BV2IC-200WW-A	2"	ANSI 150	3.23"	9.84"	4.68"	3.68"	1.10"	0.59"	M16	0.39"	F05	4xM6
BV2IC-250WW-A	2-1/2"	ANSI 150	4.05"	12.63"	5.70"	4.78"	1.31"	0.70"	M20	0.55"	F07	4xM8
BV2IC-300WW-A	3"	ANSI 150	4.80"	12.63"	6.06"	5.15"	1.31"	0.70"	M20	0.55"	F07	4xM8
BV2IC-400WW-A	4"	ANSI 150	5.60"	12.53"	6.57"	5.67"	1.31"	0.70"	M20	0.55"	F10	4xM8
