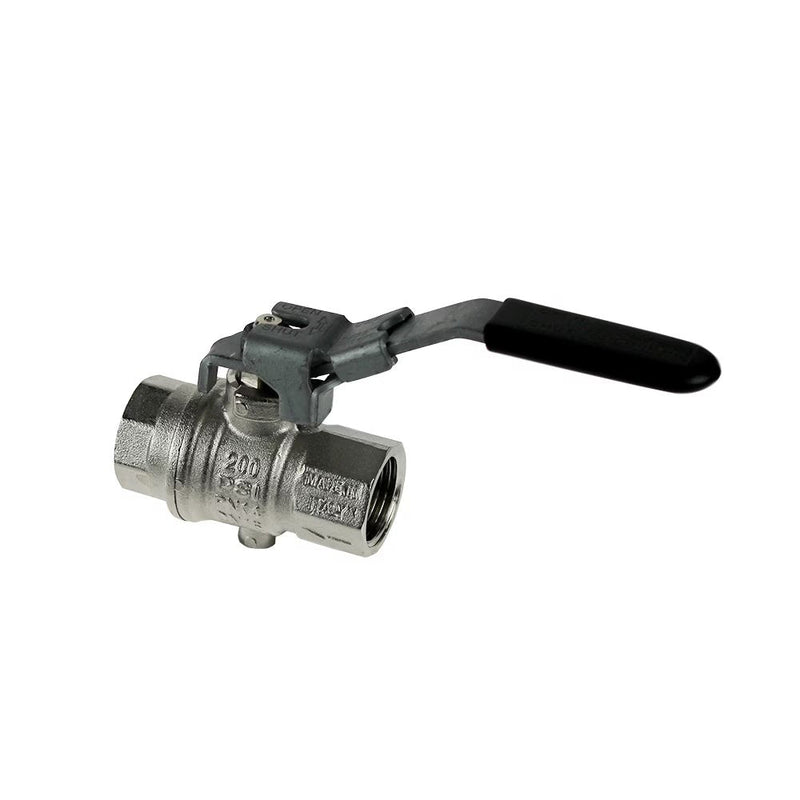

BVG4P-1LOCK by Parker | Ball Valve | 1" Female BSPP Thread w/ Venting and Locking Handle | Straight | Nickel-Plated Brass

BVG4P-1LOCK by Parker | Ball Valve | 1" Female BSPP Thread w/ Venting and Locking Handle | Straight | Nickel-Plated Brass

Save $8.81 Save $8.81
$138.22
$138.22 - $138.22
$138.22
$129.41
$129.41 - $129.41
$129.41

by Parker Hannifin
Ball Valves Series BVGLOCK:BVG4PLOCK BSPP Female/Female, Vented, Locking Handle
Specifications for Variant SKU: BVG4P-1LOCK Parker
Series: BVG4PLOCK Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Chrome-Plated Brass, Carbon Steel
Seal Material(s): PTFE
Special Properties: Valved
Product Features:
  • Nickel plated brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • PTFE packing gland
  • Carbon steel handle
Specification: Meets the requirements of European directive DI 89/392/CEE relating to the isolation of power supply and to meet the health and safety requirements for machines and materials in paragraphs L233-5 of the code DU Travail.
Part Number Flow Ø (D) Thread BSPP C G H I L L1 N
BVG4P-1/4LOCK 8.0 mm 1/4" 20 mm 22.5 mm 47.5 mm 12.0 mm 45 mm 96 mm M5
BVG4P-3/8LOCK 9.5 mm 3/8" 20 mm 22.5 mm 47.5 mm 12.0 mm 45 mm 96 mm M5
BVG4P-1/2LOCK 15.0 mm 1/2" 25 mm 29.5 mm 52.0 mm 15.5 mm 59 mm 96 mm M5
BVG4P-3/4LOCK 19.0 mm 3/4" 31 mm 32.0 mm 59.5 mm 17.0 mm 64 mm 117 mm M5
BVG4P-1LOCK 24.0 mm 1" 40 mm 40.5 mm 63.5 mm 21.0 mm 81 mm 117 mm M5
BVG4P-1.1/4LOCK 32.0 mm 1-1/4" 49 mm 46.5 mm 76.5 mm 23.0 mm 93 mm 158 mm G1/4"
BVG4P-1.1/2LOCK 40.0 mm 1-1/2" 54 mm 51.0 mm 82.5 mm 23.0 mm 102 mm 158 mm G1/4"
BVG4P-2LOCK 50.0 mm 2" 69 mm 60.5 mm 89.5 mm 26.5 mm 121 mm 158 mm G1/4"
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
