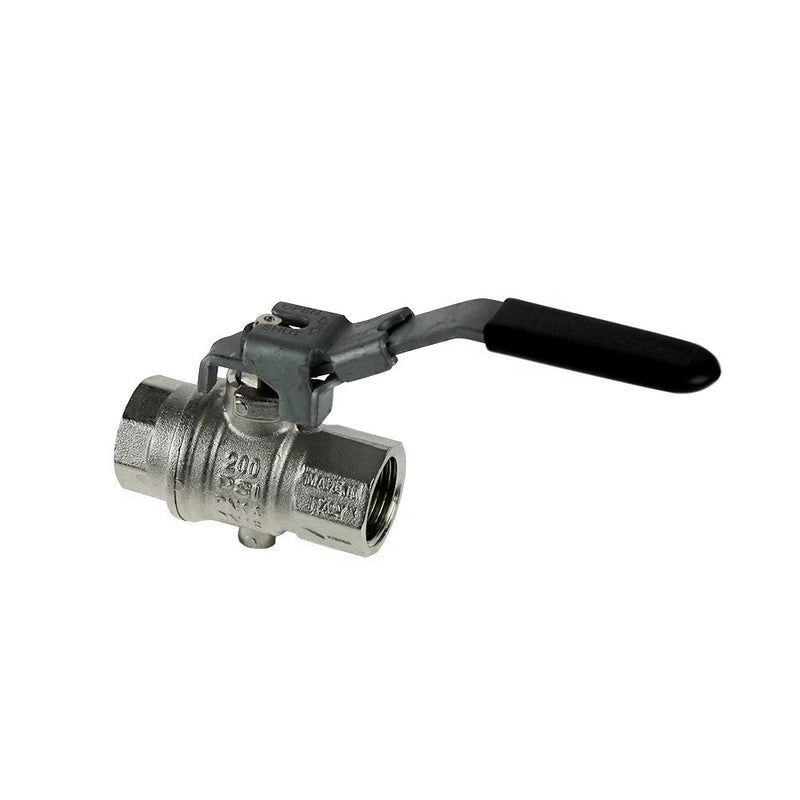

BVG4P-2LOCK by Parker | Ball Valve | 2" Female BSPP Thread w/ Venting and Locking Handle | Straight | Nickel-Plated Brass

BVG4P-2LOCK by Parker | Ball Valve | 2" Female BSPP Thread w/ Venting and Locking Handle | Straight | Nickel-Plated Brass

Save $16.20 Save $16.20
$254.68
$254.68 - $254.68
$254.68
$238.48
$238.48 - $238.48
$238.48

by Parker Hannifin
Ball Valves Series BVGLOCK:BVG4PLOCK BSPP Female/Female, Vented, Locking Handle
Specifications for Variant SKU: BVG4P-2LOCK Parker
Series: BVG4PLOCK Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Chrome-Plated Brass, Carbon Steel
Seal Material(s): PTFE
Special Properties: Valved
Product Features:
  • Nickel plated brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • PTFE packing gland
  • Carbon steel handle
Specification: Meets the requirements of European directive DI 89/392/CEE relating to the isolation of power supply and to meet the health and safety requirements for machines and materials in paragraphs L233-5 of the code DU Travail.
Part Number Flow Ø (D) Thread BSPP C G H I L L1 N
BVG4P-1/4LOCK 8.0 mm 1/4" 20 mm 22.5 mm 47.5 mm 12.0 mm 45 mm 96 mm M5
BVG4P-3/8LOCK 9.5 mm 3/8" 20 mm 22.5 mm 47.5 mm 12.0 mm 45 mm 96 mm M5
BVG4P-1/2LOCK 15.0 mm 1/2" 25 mm 29.5 mm 52.0 mm 15.5 mm 59 mm 96 mm M5
BVG4P-3/4LOCK 19.0 mm 3/4" 31 mm 32.0 mm 59.5 mm 17.0 mm 64 mm 117 mm M5
BVG4P-1LOCK 24.0 mm 1" 40 mm 40.5 mm 63.5 mm 21.0 mm 81 mm 117 mm M5
BVG4P-1.1/4LOCK 32.0 mm 1-1/4" 49 mm 46.5 mm 76.5 mm 23.0 mm 93 mm 158 mm G1/4"
BVG4P-1.1/2LOCK 40.0 mm 1-1/2" 54 mm 51.0 mm 82.5 mm 23.0 mm 102 mm 158 mm G1/4"
BVG4P-2LOCK 50.0 mm 2" 69 mm 60.5 mm 89.5 mm 26.5 mm 121 mm 158 mm G1/4"
