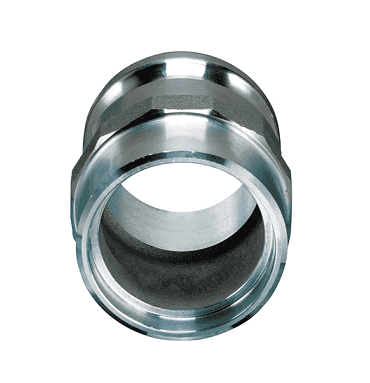

BW-ALF150 by Kuriyama | Quick-Acting Weld Coupling | Part F | 1-1/2" Male Adapter | Aluminum

BW-ALF150 by Kuriyama | Quick-Acting Weld Coupling | Part F | 1-1/2" Male Adapter | Aluminum

$8.63 - $8.63
$8.63
$9.44
$9.44 - $9.44
$9.44

Kuriyama Couplings™ - Quick-Acting Weld Couplings - Part F - Male Adapter x Butt Weld - Aluminum BW Items are Dual Purpose Butt Weld to Schedule 40 Pipe or Socket Weld to Nominal OD Tubing

Specifications for Variant SKU: BW-ALF150 Kuriyama
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 1-1/2in Male Cam & Groove, 1-1/2in Weld End
Material(s): Aluminum
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2"
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • Type 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips
  • Buna-N Gaskets
Part Number Size Weight (Lbs.)
BW-ALF150 1-1/2" x 1-1/2" 0.52 lbs
BW-ALF200 2" x 2" 0.74 lbs
BW-ALF250 2-1/2" x 2-1/2" 1.02 lbs
BW-ALF300 3" x 3" 1.36 lbs
BW-ALF400 4" x 4" 2.4 lbs
BW-ALF500 5" x 5" 3.03 lbs
BW-ALF600 6" x 6" 4.01 lbs
BW-ALF800 8" x 8" 8.05 lbs
