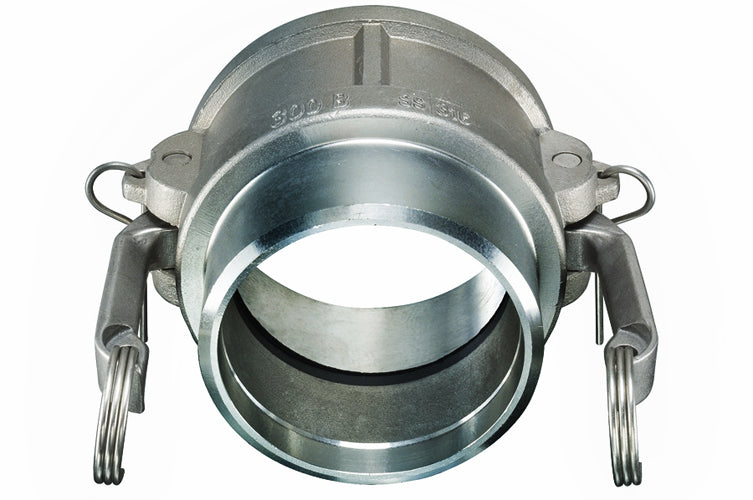

BW-SSB200 Kuriyama 316 Stainless Steel Quick-Acting Weld Coupling - Part B - 2" Female Coupler

BW-SSB200 by Kuriyama | Quick-Acting Weld Coupling | Part B | 2" Female Coupler | 316 Stainless Steel

Save $12.01 Save $12.01
$63.14
$63.14 - $63.14
$63.14
$51.13
$51.13 - $51.13
$51.13

Kuriyama Couplings™ - Quick-Acting Weld Couplings - Part B - Female Coupler - 316 Stainless Steel

Specifications for Variant SKU: BW-SSB200 Kuriyama
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 2in Female Cam & Groove, 2in Weld End
Material(s): 316 Stainless Steel, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for material and interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2"
Materials:
  • ASTM A666 316 stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
BW-SSB150 1-1/2" x 1-1/2" 1.27 lbs
BW-SSB200 2" x 2" 1.57 lbs
BW-SSB250 2-1/2" x 2-1/2" 2.13 lbs
BW-SSB300 3" x 3" 3.21 lbs
BW-SSB400 4" x 4" 5.72 lbs
BW-SSB500 5" x 5" 6.71 lbs
BW-SSB600 6" x 6" 9.13 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
