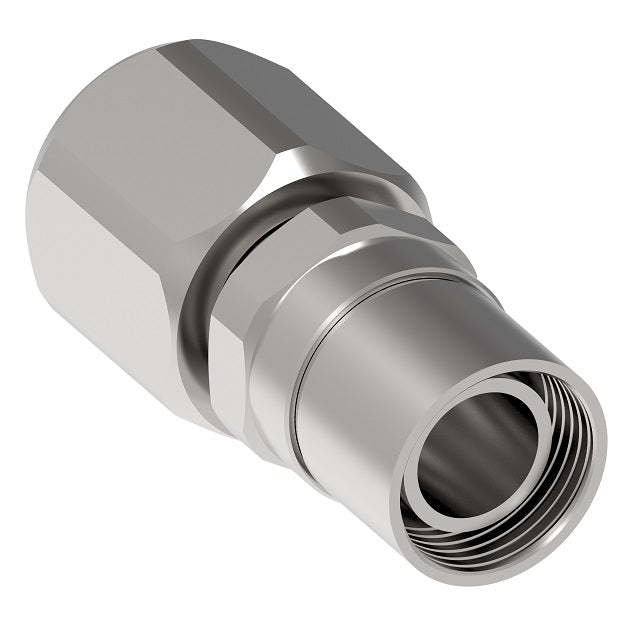

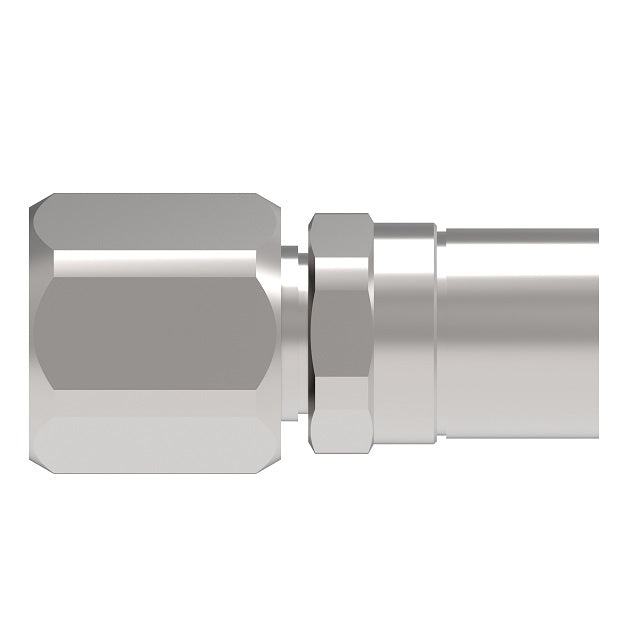

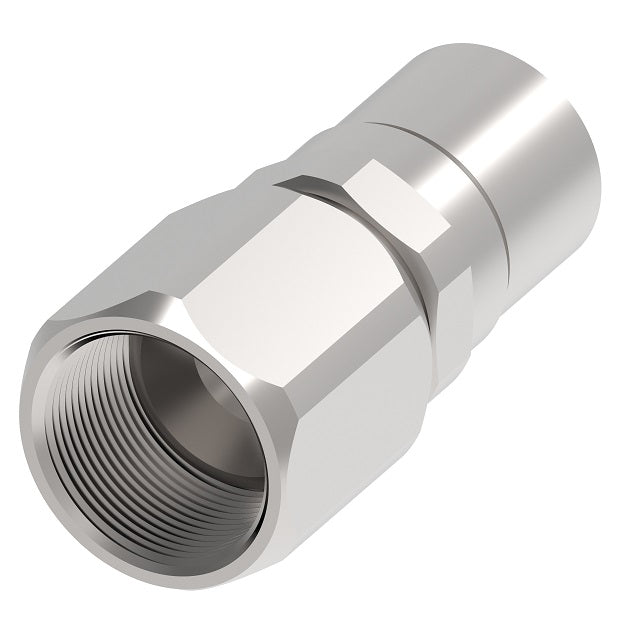

C-1310 Weatherhead by Danfoss | Everswage | Female SAE 37° JIC Swivel Crimp Fitting for Everflex Hose | 1/2" Hose Barb x 5/8" Female SAE 37° JIC Swivel | Carbon Steel
C-1310 Weatherhead by Danfoss | Everswage | Female SAE 37° JIC Swivel Crimp Fitting for Everflex Hose | 1/2" Hose Barb x 5/8" Female SAE 37° JIC Swivel | Carbon Steel
C-1310 Weatherhead by Danfoss | Everswage | Female SAE 37° JIC Swivel Crimp Fitting for Everflex Hose | 1/2" Hose Barb x 5/8" Female SAE 37° JIC Swivel | Carbon Steel
C-1310 Weatherhead by Danfoss | Everswage | Female SAE 37° JIC Swivel Crimp Fitting for Everflex Hose | 1/2" Hose Barb x 5/8" Female SAE 37° JIC Swivel | Carbon Steel

C-1310 Weatherhead by Danfoss | Everswage | Female SAE 37° JIC Swivel Crimp Fitting for Everflex Hose | 1/2" Hose Barb x 5/8" Female SAE 37° JIC Swivel | Carbon Steel

$36.55 - $36.55
$36.55
$36.55 - $36.55
$36.55

Weatherhead by Danfoss
Everswage Crimp Fitting for Everflex Hose - Female SAE 37° JIC Swivel - Straight
Specifications for Variant SKU: C-1310 Danfoss
Brand: Weatherhead
Series: Everswage Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 5/8in Female JIC
Material(s): Carbon Steel
Special Properties: Swivel
Compatible with the following Series: Everflex S-Series  |   Everflex SC-Series
About:
  • Everswage hose ends are permanently attached to Everflex Smooth Bore hose using a swaging process.
  • The unique design of the Everswage collar allows a hose assembly fabricator to slide several collars at once on the hose. This significantly reduces the time required to fabricate an assembly.
Note:
  • The operating pressure of 1/2" I.D. hoses are lowered to 1500 psi, and 5/8" I.D. hoses are lowered to 1250 psi when BRASS Everswage fittings are used.
Compatible Hose:
  • For use with Everflex Hose Series S, SC
Warning:
  • Selection of the proper end fitting for the hose end application is essential to the proper operation and safe use of the hose and related equipment. Inadequate attention to the selection of the end fittings for your application can result in leaking or the hose end blowing off the hose, leading to serious personal injury, death or property damage.
Part Number
Brass		 Part Number
Carbon Steel		 Part Number
300 Stainless Steel		 Hose I.D. Tube Size Thread Size A Hose
Cut-off
Factor**		 E F
B-1303 - S-1303 5/32" 3/16" 3/8-24" 1.38" 0.85" 1/2" -
B-1303-4 - - 5/32" 1/4" 7/16-20 1.38" 0.90" 1/2" 9/16"
B-1304 C-1304 S-1304 3/16" 1/4" 7/16-20 1.50" 0.90" 1/2" 9/16"
B-1305 C-1305 S-1305 1/4" 5/16" 1/2-20 1.63" 0.94" 9/16" 5/8"
B-1306 C-1306 S-1306 5/16" 3/8" 9/16-18 1.63" 0.99" 5/8" 11/16"
B-1308 C-1308 S-1308 13/32" 1/2" 3/4-16 2.00" 1.18" 3/4" 7/8"
B-1310 C-1310 S-1310 1/2" 5/8" 7/8-14 2.00" 1.30" 7/8" 1"
B-1312 C-1312 S-1312 5/8" 3/4" 1-1/6-12 2.25" 1.38" 1-1/16" 1-1/4"
B-1316 C-1316 S-1316 7/8" 1" 1-5/16-12 2.88" 1.51" 1-3/8" 1-1/2"
- C-1316Z* - 7/8" 1" 1-5/16-12 2.88" 1.51" 1-3/8" 1-1/2"
B-1320Z* C-1320Z* S-1320Z* 1-1/8" 1-1/4" 1-5/8-12 3.13" 1.26" 1-3/4" 2"

* The 16Z and 20Z sizes have a double stainless steel wire reinforcement.

** To determine the correct length of hose, subtract the cut-off factor for each end fitting from the overall length of assembly.

Note: Drawings may differ from actual parts.
