C-Flex® ACC40038 Saint Gobain 1/2" ID x 3/4" OD x 1/8" Wall 15' Package Length - TPE Braided Biopharm Tubing

ACC40038 C-Flex® by Saint Gobain | 1/2" ID x 3/4" OD x 1/8" Wall | TPE Braided Biopharm Tubing | 15' Package Length

Save $4.01 Save $4.01
$99.39
$99.39 - $99.39
$99.39
$95.38
$95.38 - $95.38
$95.38

Saint Gobain

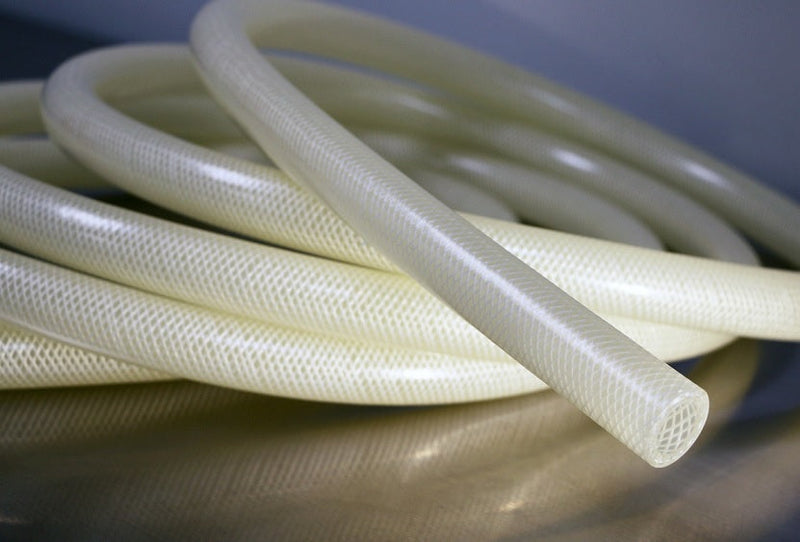

C-Flex® TPE Braided Biopharmaceutical Tubing

C-Flex® Braided tubing is specifically designed to meet the critical demands of high pressure fluid processing applications in pharmaceutical and biopharmaceutical for fluid process.

C-Flex® Braided is produced using the C-Flex® 082 translucent ADCF (Animal Derived Component Free) material formulation, a TPE material commonly approved for use in many biopharmaceutical applications. Reinforcement is provided by a polyester fiber that provides increased pressure rating and improved bend radius. It is compatible with steam sterilization and gamma-irradiation. C-Flex® Braided tubing is part of a family of TPE tubing offering the widest range of formulations and sizes in the industry including C-Flex® 082 and 374 translucent tubing for fluid flow visibility, and C-Flex® 072 opaque for peristaltic pump applications and transfer of light sensitive fluids.

No by the foot sales. This is a Packaged Length product.
Specifications for Variant SKU: ACC40038 Saint Gobain
Series: C-Flex
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 0.50in
Outer Diameter: 0.75in
Tubing Construction: Thermoplastic Polymer
Applicable Specs & Approvals: European Pharmacopoeia 3.2.9, ISO 10993-11, ISO 10993-3, ISO 10993-4, ISO 10993-5, USP - Class VI

SPECIFICATIONS

Application: Vessel and tank transfers with elevated pressure requirements, High pressure tests such as Filter Integrity Testing, Fluid transfer applications needing crush or kink-resistance SAE Rating: N/A
Other Ratings: N/A Tube: C-Flex 082 thermoplastic materials
Reinforcement: Polyester Fiber Cover: N/A
Temperature Range: -85°F (-67°C) to 275°F (135°C) Crimp Fittings: N/A
Specifications C-Flex® Braided tubing is manufactured from C-Flex 082 thermoplastic materials and tested to a variety of specifications including:
USP Class VI - ISO 10993-5 (Cytotoxicity, In-Vitro)
ISO 10993-3 (Ames Genotoxicity) - ISO 10993-11 (Systemic Toxicity, In-Vivo)
ISO 10993-4 (Hemolysis, Indirect) - European Pharmacopeia 3.2.9
Literature: C-Flex® TPE Braided Biopharmaceutical Tubing (PDF)
Other Features:
  • Up to five times higher burst pressures compared to non-braided materials.
  • A product validation test summary is available.
  • Compatible with overmolding technology for single-use systems.
  • Ultra-flexible, improved bend radius over non-reinforced tubing.
  • Compatible with autoclave and gamma irradiation.
  • WARNING: C-Flex® TPE Braided Biopharmaceutical Tubing is not intended as an implant material.
Part Number Inside Diameter Outside Diameter Wall Thickness Min.
Bend Radius		 Max. Working
Pressure*
at 68°F / 20°C		 Length
in mm in mm in mm in mm PSI bar
ACC422253 0.125" 3.8mm 0.355" 9.02mm 0.115" 2.92mm 0.5" 12.7mm 105 PSI 7.2 bar 25ft
ACC42019 0.250" 6.35mm 0.500" 12.70mm 0.125" 3.18mm 1.5" 38.1mm 110 PSI 7.6 bar 25ft
ACC42029 0.375" 9.53mm 0.625" 15.88mm 0.125" 3.18mm 2.5" 63.5mm 80 PSI 5.5 bar 25ft
ACC40038 0.500" 12.70mm 0.750" 19.05mm 0.125" 3.18mm 3.5" 88.9mm 105 PSI 7.2 bar 15ft
ACC40048 0.625" 15.88mm 1.000" 25.40mm 0.187" 4.75mm 4" 101.6mm 110 PSI 7.6 bar 15ft
ACC40053 0.625" - 1.000" - 0.187" - 4" - - - 15ft
ACC40055 0.750" 19.05mm 1.125" 28.58mm 0.187" 4.75mm 5.5" 139.7mm 110 PSI 7.6 bar 15ft

* Working pressure is determined using a 4:1 safety factor of the maximum burst pressure per ASTM D1599.

Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
