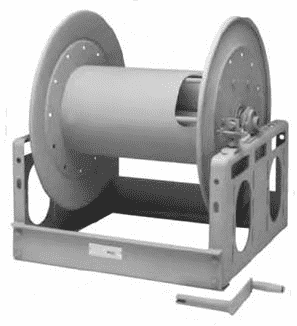

C3228-25-26 by Hannay | #10-46 | C3200 Series | Manual Rewind Storage Reel

$606.67

ย

C3200 Manual Rewind Reels To handle single 1/2" through 1-1/2" O.D.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: C3228-25-26 Hannay
Series: 3200 Series
Applications:
  • Hose
  • Cable
  • Rope
  • Wire
Features:
  • A 4-1/2" x 9" (114mm x 229mm) opening in the drum to initiate winding.
  • Designed for storage of long lengths of hose, cable, rope, wire or other materials.
  • Supplied with spring-actuated pin lock.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.)

Reel Dimensions (In.)

O.D. (in) 1/2" 3/4" 1" 1-1/4" 1-1/2" A B E F G H X
C3218-25-26 1000' length 450' length 225' length 125' length 90' length 85 lbs. 15" 9.5" 24.75" 22" 27.88" 15.5" 7"
C3228-25-26 N/A 1000' length 500' length 325' length 200' length 109 lbs. 25.5" 20" 24.75" 32.5" 27.88" 15.5" 17.5"
C3234-25-26 N/A 1300' length 650' length 400' length 275' length 122 lbs. 31.5" 26" 24.75" 38.5" 27.88" 15.5" 23.5"
Hannay Reels

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannayโ€™s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
