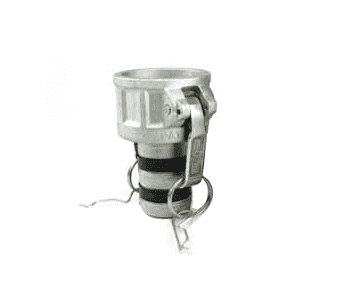

C400ALF by Jason Industrial | 4" Anti-Leak Cam and Groove | Part C | Female Coupler x Hose Shank | Aluminum

C400ALF by Jason Industrial | 4" Anti-Leak Cam and Groove | Part C | Female Coupler x Hose Shank | Aluminum

Save $0.31 Save $0.31
$30.12
$30.12 - $30.12
$30.12
$29.81
$29.81 - $29.81
$29.81

Jason Industrial Inc. Couplings & Accessories - Cam & Groove - Anti-Leak - Part C - Female Coupler x Hose Shank - Aluminum
Specifications for Variant SKU: C400ALF Jason
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 4in Female Cam & Groove, 4in Hose Barb
Material(s): Aluminum, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Overview:
  • This unique cam-lock employs a patented design that relies on two bands of rubber that act as a type of gasket surrounding two specific grooves on the cam-lock shank. When the hose wall is compressed against the bands of rubber, a preventive barrier is formed reducing the chance for leaks around the couplings.
Applications:
  • Air, Chemical, Food, Material Handling, Mining, Petroleum (including Fracking), Steam, Water
Features:
  • Sizes 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6" are manufactured to comply with Mil Spec A-A-59326A. They will interchange with any coupling manufactured to the same standard.
  • Size 5" complies to an ASTM spec. It will interchange to any other coupling manufactured to the same spec.
  • The 1/2" size is not specified to any Mil spec.
  • The 8" comes in two different styles. That size will interchange as follows:
    • Jason 800 series interchanges with PT Domestic, Kuriyama of America, Dixon Global and Campbell.
    • Jason 801 series interchanges with PT Import, NECO, Dixon Andrews, Evertite/APG, UPD and Sealfast
  • Aluminum body features being lightweight, rigid and having high tensile strength.
  • Female couplers are supplied with safety pins.
  • Cam arms are 304 Stainless.
  • With the exception of the 1/2" size, all other sizes are supplied with safety pins, which will prevent disconnection during use.
Material Specs:
  • Aluminum alloy spec ASTM B85 Grade 383.
  • 304 Type stainless steel handles.
  • Steel handle pins, pull rings and safety clips are all zinc-plated.
  • Gaskets are nitrile.
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Size Replacement Nitrile Band
C150ALF 1-1/2" RB15NBR
C200ALF 2" RB20NBR
C300ALF 3" RB30NBR
C400ALF 4" RB40NBR
C600ALF 6" RB60NBR

Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
