C61-08-12-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 3/4" Code 61 Flange | 90° Elbow | Carbon Steel

Name: C61-08-12-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 3/4" Code 61 Flange | 90° Elbow | Carbon Steel
Brand: Kurt Hydraulics
SKU: C61-08-12-K2 Kurt
Price: 61.95 USD
Availability: InStock

Save $7.74

$69.69

$69.69 - $69.69

$69.69

$61.95

$61.95 - $61.95

$61.95

Kurt Hydraulics
C61 - Code 61 Flange Rigid

Quantity

Specifications for Variant SKU: C61-08-12-K2 Kurt
Series:	K2 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Hose Barb, 3/4in Code 61 Flange
Material(s):	Carbon Steel

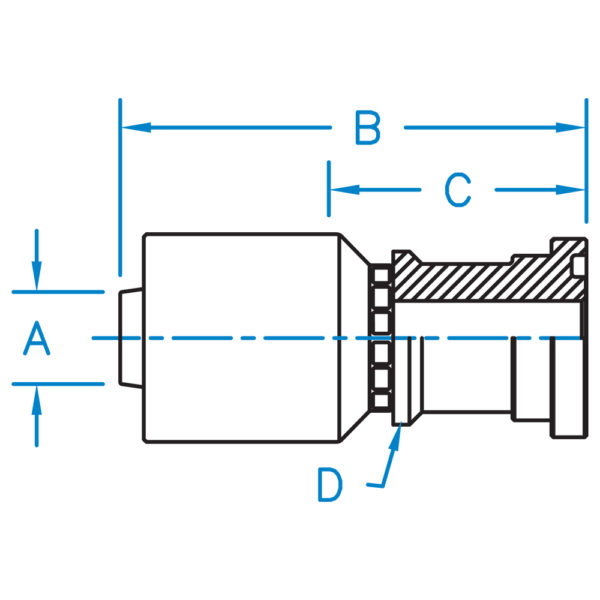

Part Number	Hose I.D. (in.)	B	C	D	Thread
C61-08-08-K2	1/2"	3.18"	1.84"	1-3/16"	N/A
C61-08-12-K2	1/2"	2.92"	1.58"	1-1/2"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
