C61-12-12-W by Kurt Hydraulics | Code 61 Flange | for 3/4" Hose ID

C61-12-12-W by Kurt Hydraulics | Code 61 Flange | for 3/4" Hose ID

Save $13.68 Save $13.68
$34.20
$34.20 - $34.20
$34.20
$20.52
$20.52 - $20.52
$20.52

by Kurt Hydraulics
C61-W - Code 61 Flange Rigid

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: C61-12-12-W Kurt
Series: W Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Code 61 Flange

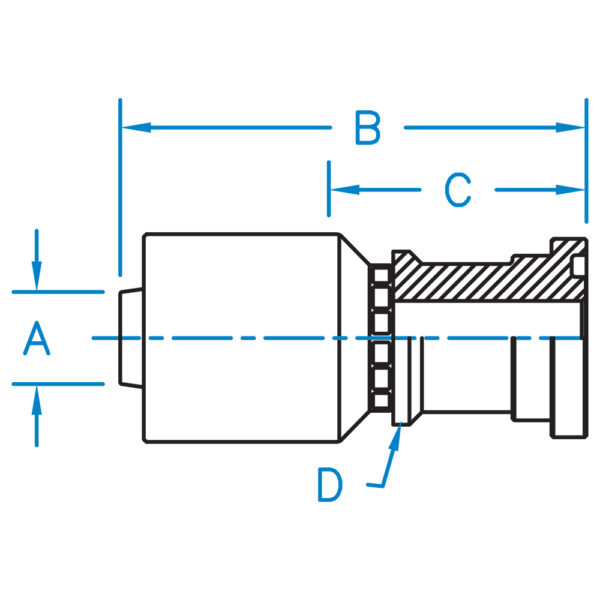

Part Number A B C D Hose ID
(In)		 Thread
C61-08-08-W 0.500 3.18 1.840 1-3/16 1/2" N/A
C61-08-12-W 0.500 2.919 1.579 1-1/2 1/2" N/A
C61-12-12-W 0.750 3.400 1.610 1-1/2 3/4" N/A
C61-12-16-W 0.750 3.700 1.910 1-3/4 3/4" N/A
C61-16-16-W 1.000 4.020 1.910 1-3/4 1.000" N/A
C61-16-20-W 1.000 4.020 1.910 2 1.000" N/A
C61-16-24-W 1.000 4.196 2.071 2-3/8 1.000" N/A
C61-20-20-W 1.250 4.400 1.950 2 1-1/4" N/A
C61-20-24-W 1.250 4.560 2.110 2-3/8 1-1/4" N/A
C61-24-24-W 1.500 4.690 2.090 2-3/8 1-1/2" N/A
C61-24-32-W 1.500 5.296 2.696 1-13/16 1-1/2" N/A
C61-32-32-W 2.000 6.020 2.770 2-13/16 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
