C61-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | for 1-1/4" Hose ID

C61-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | for 1-1/4" Hose ID

Save $28.58 Save $28.58
$71.45
$71.45 - $71.45
$71.45
$42.87
$42.87 - $42.87
$42.87

by Kurt Hydraulics
C61-JJ - Code 61 Flange Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: C61-20-20-JJ Kurt
Series: JJ Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Hose Barb, 1-1/4in Code 61 Flange

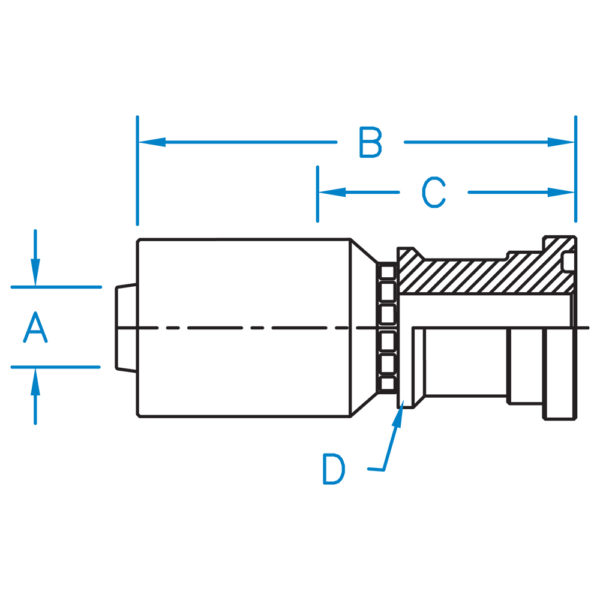

Part Number A B C D Hose ID
(In)		 Thread
C61-20-20-JJ 1.250 4.664 2.064 1-3/4R 1-1/4" N/A
C61-24-24-JJ 1.500 4.820 2.110 2-1/8R 1-1/2" N/A
C61-24-32-JJ 1.500 5.444 2.734 2-1/8R 1-1/2" N/A
C61-32-32-JJ 2.000 6.631 2.861 2-3/4R 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
